SDO HMI 2014-10-03 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.00 | 180.70 | 37.92 | 97.93 | -12.45 | 160.60 | 14.36 | 216.66 | 0.4067 | 146.1 | -169.3 | |
|
previous
or next observation for the same group /

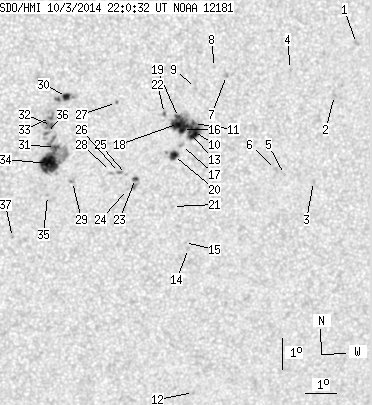

back to the solar disc SDO HMI 2014-10-03 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.29 | 0.00 | 1.27 | -9.57 | 167.94 | 21.69 | 233.44 | 0.4557 | 650.0 | 529.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -11.17 | 167.33 | 21.09 | 229.87 | 0.4636 | 785.0 | 564.1 | |
| 0.00 | 1.85 | 0.00 | 1.05 | -13.87 | 166.87 | 20.62 | 224.95 | 0.4860 | 527.0 | 531.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.29 | 165.84 | 19.59 | 229.29 | 0.4371 | 725.0 | 643.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.61 | 165.89 | 19.65 | 223.96 | 0.4727 | 689.0 | 618.1 | |
| 0.00 | 2.37 | 0.00 | 1.33 | -13.44 | 165.58 | 19.34 | 223.76 | 0.4675 | 771.0 | 623.2 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -10.40 | 163.78 | 17.54 | 225.93 | 0.4144 | -792.0 | -577.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.13 | 163.39 | 17.14 | 225.73 | 0.4069 | -703.0 | -542.7 | |
| 0.00 | 1.93 | 0.00 | 1.05 | -10.74 | 162.81 | 16.57 | 223.69 | 0.4073 | -531.0 | -476.6 | |
| 12.49 | 49.06 | 6.82 | 26.74 | -12.12 | 162.83 | 16.59 | 221.43 | 0.4236 | 926.4 | 548.5 | |
| 1.67 | -10.00 | 0.91 | -10.00 | -11.87 | 162.82 | 16.57 | 221.81 | 0.4205 | 908.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -20.66 | 163.59 | 17.35 | 211.63 | 0.5342 | 617.0 | 530.8 | |
| 1.32 | -10.00 | 0.72 | -10.00 | -12.15 | 162.71 | 16.46 | 221.17 | 0.4226 | 1098.7 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -15.87 | 162.95 | 16.70 | 216.21 | 0.4699 | 216.0 | 182.1 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -15.67 | 162.80 | 16.56 | 216.23 | 0.4661 | 363.0 | 311.0 | |
| 4.40 | -10.00 | 2.40 | -10.00 | -12.05 | 162.47 | 16.23 | 220.93 | 0.4190 | 1108.4 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.20 | -12.56 | 162.47 | 16.23 | 220.13 | 0.4251 | 757.0 | 667.4 | |
| 10.46 | -10.00 | 5.69 | -10.00 | -11.85 | 162.34 | 16.09 | 221.00 | 0.4153 | 1135.1 | 999999 | |
| 2.99 | -10.00 | 1.62 | -10.00 | -11.66 | 162.32 | 16.08 | 221.28 | 0.4129 | 1121.1 | 999999 | |
| 5.10 | 6.86 | 2.79 | 3.75 | -12.86 | 162.24 | 16.00 | 219.25 | 0.4264 | 922.0 | 659.3 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.50 | 162.32 | 16.08 | 217.02 | 0.4472 | 551.0 | 461.5 | |
| 0.44 | 1.67 | 0.24 | 0.91 | -11.52 | 161.87 | 15.63 | 220.70 | 0.4065 | 911.6 | 679.2 | |
| 1.41 | 6.51 | 0.77 | 3.56 | -13.56 | 161.07 | 14.83 | 216.12 | 0.4238 | 948.0 | 764.4 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -13.90 | 160.83 | 14.59 | 215.20 | 0.4260 | 702.0 | 529.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -13.42 | 160.77 | 14.53 | 215.77 | 0.4193 | 822.0 | 667.2 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -13.35 | 160.55 | 14.30 | 215.44 | 0.4163 | 873.0 | 720.8 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -11.13 | 160.33 | 14.09 | 218.43 | 0.3859 | -625.0 | -502.4 | |
| 0.00 | 0.53 | 0.00 | 0.29 | -13.31 | 160.26 | 14.01 | 214.95 | 0.4131 | 325.0 | 427.2 | |
| 0.00 | 2.20 | 0.00 | 1.19 | -13.59 | 159.07 | 12.83 | 212.22 | 0.4064 | -744.0 | -651.0 | |
| 3.25 | 10.99 | 1.73 | 5.85 | -10.89 | 158.75 | 12.51 | 215.52 | 0.3676 | -985.3 | -712.8 | |
| 2.46 | 56.01 | 1.32 | 30.12 | -12.50 | 158.48 | 12.23 | 212.51 | 0.3865 | -991.9 | -596.0 | |
| 1.23 | 18.99 | 0.66 | 10.14 | -11.80 | 158.32 | 12.08 | 213.19 | 0.3757 | -954.1 | -856.2 | |
| 0.53 | -32.00 | 0.28 | -32.00 | -11.54 | 158.28 | 12.03 | 213.48 | 0.3719 | -1083.5 | 999999 | |
| 21.81 | -31.00 | 11.73 | -31.00 | -13.00 | 158.28 | 12.04 | 211.40 | 0.3917 | -1036.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -14.02 | 158.30 | 12.06 | 210.10 | 0.4059 | -698.0 | -517.6 | |
| 0.44 | -32.00 | 0.24 | -32.00 | -12.04 | 158.17 | 11.93 | 212.51 | 0.3778 | -1120.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.35 | 157.26 | 11.02 | 206.38 | 0.4166 | -820.0 | -641.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
