SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 45.50 | 0.91 | 24.47 | 13.04 | 167.53 | 21.84 | 289.39 | 0.3850 | -156.1 | -150.0 | |
|
previous
or next observation for the same group /

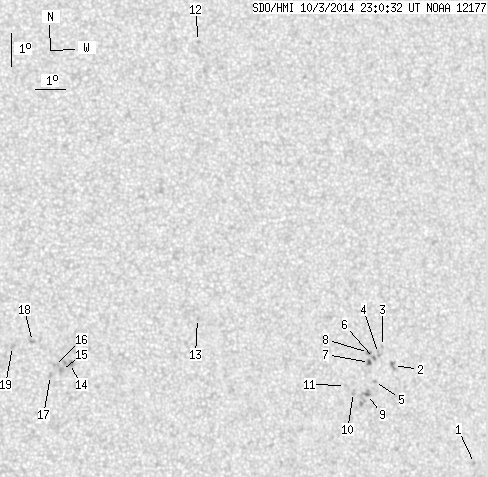

back to the solar disc SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.79 | 9.69 | 174.14 | 28.45 | 278.19 | 0.4764 | -773.0 | -621.1 | |
| 0.00 | 3.96 | 0.00 | 2.19 | 12.78 | 171.68 | 25.98 | 285.56 | 0.4454 | -794.0 | -641.2 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 13.37 | 171.37 | 25.68 | 287.01 | 0.4427 | -755.0 | -572.1 | |
| 0.00 | 2.20 | 0.00 | 1.21 | 13.16 | 171.21 | 25.52 | 286.63 | 0.4396 | -744.0 | -617.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.33 | 170.98 | 25.29 | 284.84 | 0.4335 | -715.0 | -601.5 | |
| 0.00 | 1.76 | 0.00 | 0.97 | 13.02 | 171.05 | 25.36 | 286.38 | 0.4368 | -845.0 | -735.5 | |
| 0.88 | 2.29 | 0.48 | 1.26 | 12.91 | 170.87 | 25.18 | 286.21 | 0.4337 | -993.8 | -864.9 | |
| 0.35 | 1.76 | 0.19 | 0.97 | 13.21 | 170.87 | 25.18 | 286.89 | 0.4347 | -954.0 | -785.0 | |
| 0.44 | 9.85 | 0.24 | 5.39 | 11.95 | 170.70 | 25.01 | 284.09 | 0.4283 | -892.0 | -674.5 | |
| 0.00 | 2.20 | 0.00 | 1.20 | 12.03 | 170.24 | 24.55 | 284.47 | 0.4214 | -893.0 | -693.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.25 | 169.99 | 24.30 | 285.10 | 0.4183 | -749.0 | -470.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 22.97 | 166.39 | 20.70 | 311.58 | 0.4368 | 728.0 | 492.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 14.48 | 165.28 | 19.59 | 293.87 | 0.3566 | 783.0 | 599.2 | |
| 0.00 | 4.57 | 0.00 | 2.36 | 13.27 | 161.04 | 15.35 | 295.01 | 0.2856 | 841.0 | 811.5 | |
| 0.00 | 2.99 | 0.00 | 1.54 | 13.07 | 160.77 | 15.08 | 294.69 | 0.2802 | 860.0 | 662.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 13.22 | 160.56 | 14.87 | 295.50 | 0.2780 | 949.0 | 748.3 | |
| 0.00 | 1.93 | 0.00 | 1.00 | 12.93 | 160.41 | 14.72 | 294.70 | 0.2738 | 911.0 | 731.4 | |
| 0.00 | 1.85 | 0.00 | 0.95 | 13.97 | 159.90 | 14.21 | 298.94 | 0.2735 | 945.0 | 734.4 | |
| 0.00 | 2.29 | 0.00 | 1.17 | 13.84 | 159.26 | 13.57 | 299.55 | 0.2630 | 855.0 | 722.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
