SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.34 | 424.11 | 35.63 | 214.71 | -1.43 | 154.38 | 8.68 | 227.29 | 0.2061 | 878.8 | 429.3 | |
|
previous
or next observation for the same group /

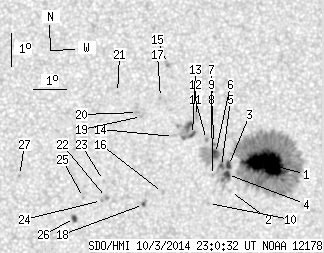

back to the solar disc SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.78 | 320.17 | 27.77 | 162.35 | -1.49 | 154.90 | 9.21 | 228.97 | 0.2130 | 1487.4 | 431.2 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -2.32 | 153.84 | 8.15 | 222.63 | 0.2101 | 441.0 | 280.8 | |
| 2.90 | 27.08 | 1.47 | 13.69 | -1.53 | 153.78 | 8.09 | 225.08 | 0.1995 | 1178.2 | 577.2 | |
| 3.25 | -3.00 | 1.65 | -3.00 | -1.80 | 153.75 | 8.06 | 224.02 | 0.2025 | 1037.7 | 999999 | |
| 1.41 | -3.00 | 0.71 | -3.00 | -1.56 | 153.56 | 7.87 | 224.21 | 0.1973 | 1032.4 | 999999 | |
| 4.05 | 25.94 | 2.04 | 13.08 | -1.16 | 153.38 | 7.69 | 224.97 | 0.1902 | 1232.8 | 471.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -0.86 | 153.32 | 7.63 | 225.89 | 0.1858 | 944.0 | 857.8 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -1.83 | 153.29 | 7.60 | 222.27 | 0.1975 | 719.0 | 469.4 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -0.37 | 153.29 | 7.60 | 227.70 | 0.1796 | 907.0 | 676.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -2.67 | 153.18 | 7.48 | 219.10 | 0.2073 | 794.0 | 650.7 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -0.73 | 153.11 | 7.42 | 225.56 | 0.1817 | 944.0 | 741.9 | |
| 0.00 | 3.08 | 0.00 | 1.55 | -0.03 | 152.81 | 7.12 | 227.24 | 0.1695 | 1043.0 | 723.7 | |
| 1.23 | 17.41 | 0.62 | 8.75 | -0.58 | 152.69 | 7.00 | 224.49 | 0.1746 | 1092.3 | 821.5 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -0.63 | 152.11 | 6.42 | 221.81 | 0.1685 | 412.0 | 307.4 | |
| 0.00 | 2.02 | 0.00 | 1.01 | 1.58 | 151.94 | 6.25 | 231.40 | 0.1398 | 974.0 | 801.7 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -2.32 | 151.78 | 6.09 | 214.50 | 0.1881 | 759.0 | 623.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 0.55 | 151.72 | 6.03 | 225.12 | 0.1489 | 795.0 | 685.0 | |
| 0.79 | 3.17 | 0.40 | 1.60 | -2.68 | 151.21 | 5.52 | 210.90 | 0.1880 | -714.9 | -482.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -0.01 | 151.15 | 5.46 | 219.71 | 0.1496 | -820.0 | -674.1 | |
| 0.00 | 1.85 | 0.00 | 0.92 | 0.11 | 151.03 | 5.34 | 219.60 | 0.1466 | -841.0 | -747.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 0.72 | 150.43 | 4.74 | 219.00 | 0.1318 | -707.0 | -500.1 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -2.45 | 150.10 | 4.41 | 206.07 | 0.1755 | -985.0 | -831.0 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -1.93 | 150.01 | 4.31 | 206.93 | 0.1668 | -710.0 | -520.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -2.54 | 149.95 | 4.26 | 205.07 | 0.1757 | -840.0 | -745.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -2.44 | 149.40 | 3.71 | 202.42 | 0.1705 | -603.0 | -436.8 | |
| 1.93 | 3.25 | 0.97 | 1.64 | -3.08 | 149.14 | 3.44 | 199.67 | 0.1791 | -1060.6 | -751.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -1.76 | 147.48 | 1.79 | 192.13 | 0.1493 | -980.0 | -771.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
