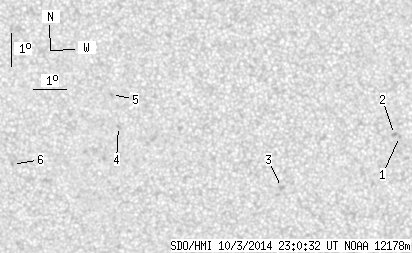

SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.40 | 0.00 | 4.78 | -4.35 | 143.55 | -2.14 | 170.02 | 0.2069 | -3.0 | 132.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | -4.05 | 148.51 | 2.81 | 194.86 | 0.1919 | 933.0 | 727.6 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -3.99 | 148.36 | 2.66 | 194.18 | 0.1902 | 1049.0 | 831.3 | |
| 0.00 | 2.46 | 0.00 | 1.25 | -5.60 | 144.95 | -0.74 | 176.54 | 0.2126 | 687.0 | 624.1 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -3.76 | 140.05 | -5.64 | 151.32 | 0.2052 | -828.0 | -643.8 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -2.79 | 139.85 | -5.84 | 147.96 | 0.1925 | -970.0 | -715.9 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -4.96 | 136.83 | -8.86 | 142.35 | 0.2525 | -889.0 | -667.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
