SDO HMI 2014-10-04 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.40 | 37.39 | 2.28 | 19.63 | -11.74 | 139.92 | -5.22 | 164.15 | 0.3288 | 338.1 | 429.7 | |
|
previous
or next observation for the same group /

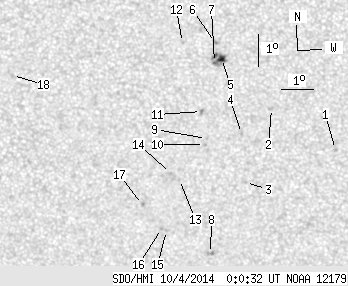

back to the solar disc SDO HMI 2014-10-04 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.79 | -12.80 | 143.82 | -1.31 | 176.15 | 0.3343 | 702.0 | 589.6 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -11.51 | 141.87 | -3.27 | 169.81 | 0.3169 | 807.0 | 629.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.87 | 141.03 | -4.10 | 168.75 | 0.3577 | 695.0 | 599.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.31 | 140.94 | -4.20 | 167.53 | 0.3329 | 720.0 | 599.6 | |
| 3.87 | 14.95 | 2.01 | 7.76 | -9.95 | 140.37 | -4.77 | 163.92 | 0.2973 | 1185.1 | 803.2 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -9.45 | 140.19 | -4.95 | 162.86 | 0.2901 | 1115.0 | 913.5 | |
| 0.53 | -5.00 | 0.27 | -5.00 | -10.08 | 140.15 | -4.99 | 163.36 | 0.3003 | 838.5 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.66 | -16.17 | 139.89 | -5.25 | 167.19 | 0.3980 | 690.0 | 631.6 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.48 | 139.86 | -5.28 | 164.60 | 0.3399 | 868.0 | 652.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.67 | 139.79 | -5.35 | 164.57 | 0.3432 | 707.0 | 619.6 | |
| 0.00 | 2.11 | 0.00 | 1.11 | -11.62 | 139.72 | -5.42 | 163.50 | 0.3269 | 925.0 | 731.2 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.46 | 139.18 | -5.96 | 159.65 | 0.2957 | 706.0 | 461.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.79 | 138.99 | -6.15 | 163.34 | 0.3645 | -762.0 | -663.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.60 | 138.72 | -6.42 | 162.48 | 0.3629 | -772.0 | -588.6 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.44 | 138.53 | -6.61 | 163.50 | 0.3921 | -731.0 | -641.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.38 | 138.38 | -6.76 | 163.09 | 0.3919 | -872.0 | -776.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -14.61 | 137.81 | -7.33 | 161.11 | 0.3829 | -970.0 | -769.5 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -10.58 | 133.91 | -11.23 | 146.86 | 0.3516 | -757.0 | -592.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
