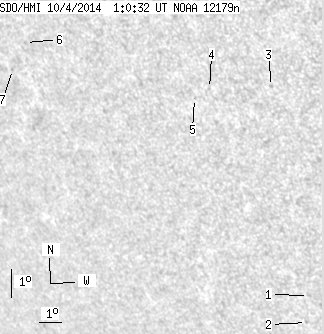

SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.48 | 0.00 | 5.49 | -19.52 | 104.54 | -40.05 | 124.51 | 0.7386 | 340.7 | 234.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 1.09 | -24.09 | 107.97 | -36.62 | 131.96 | 0.7346 | 647.0 | 434.1 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -25.06 | 107.55 | -37.04 | 132.72 | 0.7449 | 654.0 | 561.9 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -17.05 | 108.46 | -36.13 | 123.99 | 0.6821 | 569.0 | 409.6 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -17.30 | 105.95 | -38.64 | 122.58 | 0.7099 | 596.0 | 463.7 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -17.68 | 105.24 | -39.35 | 122.60 | 0.7194 | 522.0 | 419.0 | |
| 0.00 | 1.14 | 0.00 | 0.90 | -16.42 | 98.35 | -46.24 | 117.26 | 0.7816 | -171.0 | -250.8 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -17.37 | 97.44 | -47.15 | 117.94 | 0.7943 | -432.0 | -358.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
