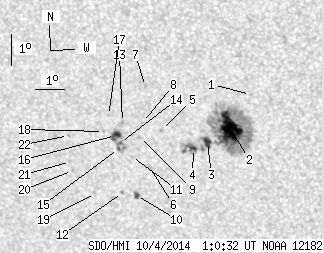

SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.95 | 208.97 | 30.56 | 120.60 | -13.13 | 120.72 | -23.87 | 129.81 | 0.5147 | 364.2 | 234.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.40 | -11.81 | 122.28 | -22.31 | 129.58 | 0.4841 | 497.0 | 452.5 | |
| 37.03 | 174.24 | 21.21 | 99.95 | -12.92 | 121.51 | -23.08 | 130.38 | 0.5036 | 1175.2 | 378.9 | |
| 5.10 | -2.00 | 2.95 | -2.00 | -13.40 | 120.69 | -23.90 | 130.14 | 0.5176 | 875.8 | 999999 | |
| 2.55 | -2.00 | 1.48 | -2.00 | -13.62 | 120.19 | -24.40 | 129.88 | 0.5253 | 704.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -13.09 | 119.16 | -25.43 | 127.94 | 0.5324 | -747.0 | -649.6 | |
| 0.00 | 2.02 | 0.00 | 1.20 | -14.27 | 118.61 | -25.98 | 129.09 | 0.5491 | -122.0 | -261.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -11.72 | 118.76 | -25.83 | 125.38 | 0.5253 | 808.0 | 652.7 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -12.87 | 118.53 | -26.05 | 126.93 | 0.5378 | 422.0 | 315.5 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -13.36 | 118.37 | -26.21 | 127.49 | 0.5438 | -277.0 | -179.6 | |
| 1.58 | 2.90 | 0.95 | 1.74 | -15.23 | 118.03 | -26.56 | 129.85 | 0.5641 | -899.3 | -725.7 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -13.98 | 118.02 | -26.57 | 128.05 | 0.5532 | -741.0 | -536.8 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -15.16 | 117.55 | -27.04 | 129.25 | 0.5688 | -448.0 | -486.5 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -12.91 | 117.84 | -26.75 | 126.26 | 0.5462 | -738.0 | -551.8 | |
| 0.53 | 15.30 | 0.31 | 9.09 | -13.55 | 117.70 | -26.89 | 127.08 | 0.5533 | -1002.7 | -726.4 | |
| 0.62 | -14.00 | 0.37 | -14.00 | -13.75 | 117.60 | -26.99 | 127.27 | 0.5561 | -770.6 | 999999 | |
| 5.54 | -14.00 | 3.29 | -14.00 | -13.34 | 117.55 | -27.04 | 126.61 | 0.5532 | -938.1 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -12.71 | 117.38 | -27.21 | 125.50 | 0.5500 | -764.0 | -592.3 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -13.23 | 117.15 | -27.44 | 126.05 | 0.5570 | -758.0 | -540.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -15.25 | 116.59 | -28.00 | 128.40 | 0.5801 | -377.0 | -329.8 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -14.55 | 115.88 | -28.71 | 126.73 | 0.5823 | -663.0 | -523.3 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -14.26 | 115.85 | -28.74 | 126.30 | 0.5804 | -410.0 | -402.3 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -13.43 | 115.90 | -28.69 | 125.13 | 0.5732 | -600.0 | -597.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
