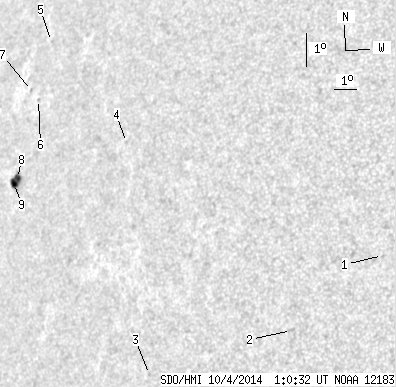

SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.79 | 21.46 | 7.59 | 17.51 | 13.36 | 91.70 | -52.89 | 78.23 | 0.7919 | 394.4 | 117.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.78 | 12.48 | 106.00 | -38.59 | 78.21 | 0.6244 | 653.0 | 524.1 | |
| 0.00 | 2.46 | 0.00 | 1.63 | 9.98 | 102.76 | -41.83 | 82.37 | 0.6650 | -787.0 | -586.0 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 8.19 | 96.94 | -47.65 | 84.92 | 0.7366 | -548.0 | -491.8 | |
| 0.00 | 1.14 | 0.00 | 0.88 | 15.02 | 94.26 | -50.33 | 75.91 | 0.7688 | -300.0 | -269.3 | |
| 0.00 | 0.79 | 0.00 | 0.68 | 17.70 | 89.32 | -55.27 | 72.98 | 0.8210 | 421.0 | 396.2 | |
| 0.00 | 0.88 | 0.00 | 0.76 | 15.91 | 89.38 | -55.21 | 75.16 | 0.8193 | 586.0 | 559.2 | |
| 0.00 | 1.41 | 0.00 | 1.22 | 16.14 | 88.89 | -55.70 | 74.91 | 0.8240 | 475.0 | 451.8 | |
| 3.78 | 12.58 | 3.26 | 10.85 | 13.46 | 89.15 | -55.44 | 78.16 | 0.8205 | 738.5 | 320.7 | |
| 5.01 | -8.00 | 4.33 | -8.00 | 13.30 | 89.04 | -55.54 | 78.36 | 0.8215 | 657.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
