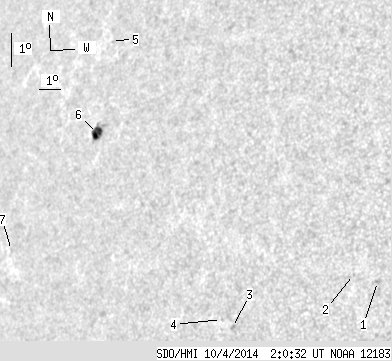

SDO HMI 2014-10-04 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.71 | 22.79 | 7.42 | 18.57 | 12.19 | 91.13 | -52.91 | 79.72 | 0.7924 | 255.7 | 8.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.85 | 0.00 | 1.21 | 9.99 | 102.82 | -41.22 | 82.33 | 0.6572 | -689.0 | -592.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 10.13 | 101.81 | -42.23 | 82.16 | 0.6701 | -511.0 | -399.6 | |
| 0.00 | 2.20 | 0.00 | 1.59 | 8.14 | 96.93 | -47.10 | 85.00 | 0.7303 | -607.0 | -473.9 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 8.34 | 96.41 | -47.63 | 84.72 | 0.7364 | -472.0 | -349.3 | |
| 0.00 | 0.35 | 0.00 | 0.30 | 16.18 | 88.82 | -55.22 | 74.82 | 0.8195 | 501.0 | 570.8 | |
| 8.71 | 15.31 | 7.42 | 13.02 | 13.35 | 89.12 | -54.92 | 78.28 | 0.8154 | 717.7 | 358.9 | |
| 0.00 | 1.23 | 0.00 | 1.15 | 9.44 | 85.48 | -58.56 | 82.96 | 0.8501 | -116.0 | -124.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
