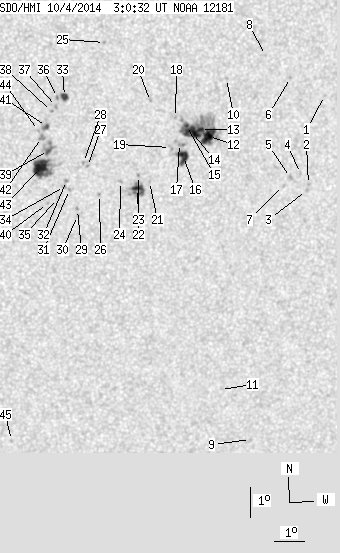

SDO HMI 2014-10-04 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.07 | 206.58 | 36.43 | 114.13 | -12.72 | 161.24 | 17.75 | 222.26 | 0.4436 | 102.8 | 120.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.15 | 167.12 | 23.64 | 233.12 | 0.4937 | 593.0 | 459.1 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -13.96 | 166.86 | 23.37 | 228.41 | 0.5168 | 782.0 | 611.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -14.15 | 166.81 | 23.32 | 228.07 | 0.5181 | 569.0 | 431.8 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.59 | 166.55 | 23.06 | 228.58 | 0.5098 | 651.0 | 537.4 | |
| 0.00 | 1.94 | 0.00 | 1.11 | -13.70 | 166.23 | 22.74 | 228.01 | 0.5073 | 833.0 | 661.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -10.53 | 165.95 | 22.46 | 232.74 | 0.4738 | 695.0 | 547.8 | |
| 0.00 | 1.41 | 0.00 | 0.81 | -13.95 | 166.02 | 22.53 | 227.38 | 0.5074 | 740.0 | 622.4 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -9.80 | 165.07 | 21.58 | 232.90 | 0.4563 | 690.0 | 605.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -22.33 | 166.02 | 22.53 | 216.72 | 0.5952 | 498.0 | 439.0 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -10.46 | 163.84 | 20.35 | 230.09 | 0.4478 | -657.0 | -488.2 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -20.57 | 164.70 | 21.21 | 217.03 | 0.5647 | 611.0 | 588.8 | |
| 13.64 | 72.23 | 7.60 | 40.16 | -12.27 | 163.39 | 19.90 | 226.42 | 0.4610 | 847.5 | 580.5 | |
| 2.29 | -12.00 | 1.27 | -12.00 | -12.04 | 163.11 | 19.62 | 226.39 | 0.4554 | 1198.9 | 999999 | |
| 11.52 | -12.00 | 6.40 | -12.00 | -12.12 | 162.85 | 19.36 | 225.88 | 0.4534 | 1111.0 | 999999 | |
| 1.50 | -12.00 | 0.83 | -12.00 | -11.89 | 162.64 | 19.15 | 225.94 | 0.4486 | 1178.4 | 999999 | |
| 8.80 | 12.76 | 4.90 | 7.10 | -12.87 | 162.62 | 19.13 | 224.34 | 0.4590 | 939.3 | 659.9 | |
| 0.00 | 5.01 | 0.00 | 2.78 | -12.45 | 162.46 | 18.97 | 224.75 | 0.4526 | 845.0 | 718.0 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -11.62 | 162.27 | 18.78 | 225.81 | 0.4415 | 866.0 | 667.7 | |
| 0.00 | 2.02 | 0.00 | 1.12 | -12.57 | 162.17 | 18.68 | 224.14 | 0.4508 | 805.0 | 733.9 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -11.09 | 161.42 | 17.94 | 225.39 | 0.4263 | 756.0 | 584.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -13.63 | 161.57 | 18.08 | 221.58 | 0.4564 | -339.0 | -281.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -13.42 | 161.20 | 17.71 | 221.30 | 0.4502 | -574.0 | -452.1 | |
| 4.13 | 18.47 | 2.30 | 10.27 | -13.84 | 161.20 | 17.71 | 220.68 | 0.4550 | 1070.0 | 725.5 | |
| 0.00 | 2.11 | 0.00 | 1.17 | -13.59 | 160.63 | 17.14 | 220.12 | 0.4464 | 795.0 | 552.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -9.18 | 159.85 | 16.36 | 226.16 | 0.3873 | 883.0 | 660.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -13.99 | 159.98 | 16.49 | 218.46 | 0.4447 | -776.0 | -666.4 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.08 | 159.53 | 16.04 | 219.03 | 0.4293 | -911.0 | -676.5 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -12.94 | 159.39 | 15.90 | 218.99 | 0.4263 | -671.0 | -514.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -14.44 | 159.30 | 15.81 | 216.66 | 0.4439 | -836.0 | -726.4 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -14.64 | 159.32 | 15.83 | 216.42 | 0.4464 | -687.0 | -581.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.79 | 159.00 | 15.51 | 217.05 | 0.4329 | -723.0 | -569.5 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -13.50 | 158.89 | 15.40 | 217.26 | 0.4282 | -897.0 | -805.5 | |
| 3.52 | 5.10 | 1.89 | 2.75 | -10.83 | 158.67 | 15.18 | 221.04 | 0.3933 | -942.2 | -727.2 | |
| 0.00 | 2.02 | 0.00 | 1.11 | -13.69 | 158.84 | 15.35 | 216.89 | 0.4301 | -823.0 | -706.2 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -14.07 | 158.64 | 15.15 | 216.00 | 0.4330 | -698.0 | -588.6 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -10.86 | 158.45 | 14.96 | 220.59 | 0.3913 | -1043.0 | -851.7 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -11.14 | 158.43 | 14.94 | 220.08 | 0.3946 | -810.0 | -689.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -11.29 | 158.28 | 14.79 | 219.54 | 0.3949 | -902.0 | -758.9 | |
| 2.11 | 11.44 | 1.15 | 6.20 | -12.53 | 158.25 | 14.76 | 217.55 | 0.4099 | -1038.5 | -797.7 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -14.22 | 158.33 | 14.84 | 215.23 | 0.4320 | -736.0 | -556.9 | |
| 1.58 | 4.93 | 0.86 | 2.66 | -11.76 | 158.15 | 14.66 | 218.53 | 0.3994 | -937.8 | -832.4 | |
| 0.00 | 3.87 | 0.00 | 2.09 | -12.11 | 158.01 | 14.52 | 217.73 | 0.4023 | -1063.0 | -885.7 | |
| 16.98 | 33.25 | 9.23 | 18.10 | -13.06 | 158.03 | 14.54 | 216.33 | 0.4145 | -1079.1 | -579.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.88 | 157.90 | 14.41 | 217.87 | 0.3984 | -1129.0 | -945.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -22.03 | 157.81 | 14.32 | 205.74 | 0.5300 | 632.0 | 544.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
