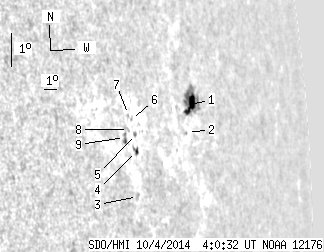

SDO HMI 2014-10-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.56 | 46.81 | 14.82 | 63.28 | 6.87 | 211.88 | 68.94 | 274.81 | 0.9307 | -180.6 | 13.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.59 | 32.11 | 13.68 | 46.01 | 7.08 | 213.17 | 70.23 | 275.14 | 0.9391 | -459.1 | -125.0 | |
| 0.00 | 0.62 | 0.00 | 0.86 | 6.29 | 212.64 | 69.70 | 274.25 | 0.9363 | -198.0 | -245.7 | |
| 0.00 | 2.20 | 0.00 | 2.58 | 4.81 | 208.29 | 65.35 | 272.26 | 0.9081 | 98.0 | 109.9 | |
| 0.97 | 3.70 | 1.14 | 4.35 | 6.15 | 208.50 | 65.56 | 273.75 | 0.9089 | 338.5 | 284.4 | |
| 0.00 | 1.94 | 0.00 | 2.28 | 6.66 | 208.56 | 65.62 | 274.32 | 0.9090 | 258.0 | 195.0 | |
| 0.00 | 0.88 | 0.00 | 1.03 | 7.14 | 208.39 | 65.45 | 274.82 | 0.9075 | 463.0 | 363.7 | |
| 0.00 | 0.79 | 0.00 | 0.92 | 7.30 | 208.22 | 65.28 | 275.00 | 0.9062 | 450.0 | 414.2 | |
| 0.00 | 0.79 | 0.00 | 0.92 | 6.86 | 208.10 | 65.16 | 274.50 | 0.9055 | 398.0 | 355.2 | |
| 0.00 | 3.78 | 0.00 | 4.33 | 6.66 | 207.76 | 64.81 | 274.25 | 0.9031 | 484.0 | 504.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
