SDO HMI 2014-10-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.52 | 32.03 | 1.82 | 16.78 | -12.01 | 139.67 | -3.27 | 170.10 | 0.3252 | 283.6 | 300.8 | |
|
previous
or next observation for the same group /

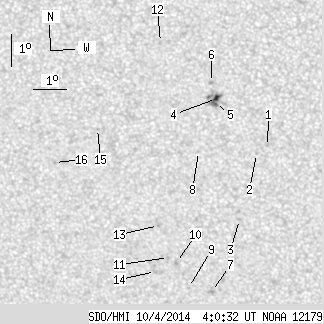

back to the solar disc SDO HMI 2014-10-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.50 | -11.50 | 141.91 | -1.03 | 176.74 | 0.3121 | 761.0 | 564.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -11.72 | 141.57 | -1.37 | 175.73 | 0.3161 | 678.0 | 494.2 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.82 | 141.03 | -1.91 | 174.69 | 0.3515 | 776.0 | 531.6 | |
| 2.73 | 13.20 | 1.41 | 6.83 | -9.99 | 140.36 | -2.58 | 171.16 | 0.2898 | 1169.4 | 814.6 | |
| 0.79 | -4.00 | 0.41 | -4.00 | -10.15 | 140.33 | -2.61 | 171.14 | 0.2924 | 885.1 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -9.49 | 140.21 | -2.73 | 170.37 | 0.2819 | 1178.0 | 920.5 | |
| 0.00 | 2.11 | 0.00 | 1.14 | -16.15 | 140.13 | -2.81 | 173.05 | 0.3907 | 963.0 | 707.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.66 | 139.79 | -3.15 | 170.24 | 0.3188 | 770.0 | 546.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -16.02 | 139.41 | -3.53 | 171.25 | 0.3902 | 553.0 | 467.1 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -15.21 | 139.06 | -3.89 | 170.00 | 0.3783 | -839.0 | -710.0 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -15.05 | 138.81 | -4.13 | 169.30 | 0.3764 | -784.0 | -699.3 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -8.26 | 138.68 | -4.27 | 163.94 | 0.2673 | 681.0 | 622.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.02 | 138.52 | -4.42 | 167.99 | 0.3610 | -781.0 | -645.2 | |
| 0.00 | 2.11 | 0.00 | 1.13 | -15.51 | 138.39 | -4.55 | 168.50 | 0.3850 | -721.0 | -625.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.96 | 136.70 | -6.24 | 160.47 | 0.3205 | -634.0 | -452.1 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.05 | 135.35 | -7.59 | 157.92 | 0.3452 | -728.0 | -585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
