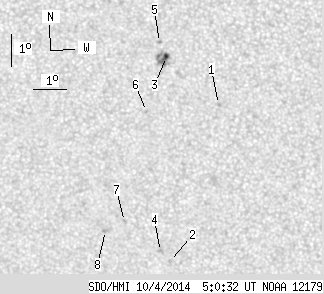

SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.20 | 25.24 | 1.14 | 13.21 | -11.90 | 140.14 | -2.25 | 173.10 | 0.3202 | 493.0 | 517.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.64 | -11.46 | 141.97 | -0.42 | 178.66 | 0.3111 | 840.0 | 658.4 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -16.50 | 140.42 | -1.97 | 175.19 | 0.3949 | 766.0 | 522.1 | |
| 2.20 | 13.81 | 1.14 | 7.15 | -9.96 | 140.39 | -2.00 | 173.10 | 0.2878 | 1207.2 | 819.8 | |
| 0.00 | 2.46 | 0.00 | 1.32 | -16.18 | 140.14 | -2.25 | 174.43 | 0.3901 | 801.0 | 701.2 | |
| 0.00 | 1.67 | 0.00 | 0.86 | -9.52 | 140.18 | -2.21 | 172.18 | 0.2810 | 1112.0 | 848.5 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -11.69 | 139.76 | -2.63 | 171.84 | 0.3178 | 765.0 | 642.4 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -15.21 | 139.04 | -3.36 | 171.34 | 0.3767 | -950.0 | -683.1 | |
| 0.00 | 2.29 | 0.00 | 1.23 | -15.50 | 138.44 | -3.95 | 169.96 | 0.3830 | -697.0 | -639.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
