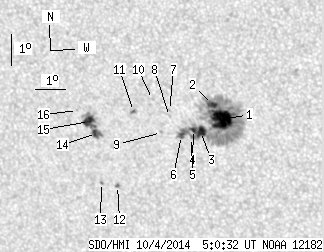

SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.65 | 214.41 | 35.63 | 121.56 | -13.18 | 120.79 | -21.61 | 132.70 | 0.4894 | 506.9 | 279.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.39 | 178.96 | 16.54 | 100.92 | -13.02 | 121.72 | -20.67 | 133.66 | 0.4773 | 1241.7 | 398.1 | |
| 5.02 | -1.00 | 2.82 | -1.00 | -12.56 | 121.47 | -20.93 | 132.57 | 0.4754 | 1005.4 | 999999 | |
| 7.83 | -1.00 | 4.44 | -1.00 | -13.43 | 120.99 | -21.40 | 133.30 | 0.4897 | 913.2 | 999999 | |
| 2.90 | -1.00 | 1.65 | -1.00 | -13.38 | 120.76 | -21.63 | 132.91 | 0.4916 | 786.4 | 999999 | |
| 0.26 | -1.00 | 0.15 | -1.00 | -13.64 | 120.67 | -21.72 | 133.19 | 0.4953 | 653.0 | 999999 | |
| 2.38 | -1.00 | 1.36 | -1.00 | -13.59 | 120.34 | -22.05 | 132.68 | 0.4984 | 789.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.81 | 120.02 | -22.37 | 131.07 | 0.4943 | 614.0 | 484.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -13.00 | 120.00 | -22.39 | 131.34 | 0.4964 | 742.0 | 531.9 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -13.52 | 119.68 | -22.71 | 131.74 | 0.5051 | -545.0 | -448.1 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -12.48 | 119.49 | -22.91 | 129.89 | 0.4973 | 556.0 | 316.4 | |
| 0.70 | 2.11 | 0.40 | 1.21 | -12.90 | 118.81 | -23.59 | 129.71 | 0.5090 | 790.0 | 592.2 | |
| 0.62 | 1.94 | 0.36 | 1.14 | -15.30 | 117.99 | -24.40 | 132.31 | 0.5410 | -877.0 | -738.5 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -15.23 | 117.45 | -24.94 | 131.59 | 0.5462 | -671.0 | -639.4 | |
| 4.58 | 25.78 | 2.67 | 15.04 | -13.66 | 117.47 | -24.92 | 129.33 | 0.5314 | -945.5 | -685.3 | |
| 8.97 | -14.00 | 5.24 | -14.00 | -13.29 | 117.28 | -25.12 | 128.55 | 0.5303 | -1017.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -12.96 | 116.90 | -25.49 | 127.64 | 0.5317 | -678.0 | -544.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
