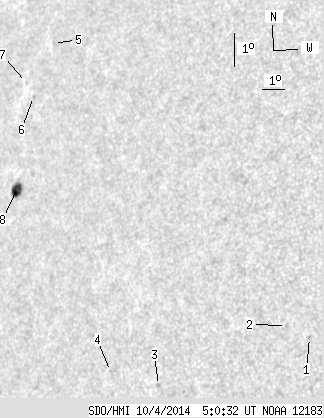

SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.68 | 21.38 | 7.94 | 16.89 | 13.14 | 90.93 | -51.46 | 78.50 | 0.7781 | 347.9 | 71.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.73 | 9.99 | 102.89 | -39.50 | 82.24 | 0.6345 | -742.0 | -632.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 10.28 | 101.93 | -40.46 | 81.83 | 0.6474 | -517.0 | -419.6 | |
| 0.00 | 1.94 | 0.00 | 1.36 | 8.09 | 96.92 | -45.47 | 85.11 | 0.7107 | -695.0 | -550.2 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 8.33 | 94.76 | -47.63 | 84.71 | 0.7365 | -448.0 | -354.6 | |
| 0.00 | 1.32 | 0.00 | 1.08 | 17.89 | 89.30 | -53.10 | 72.51 | 0.8001 | 579.0 | 391.3 | |
| 0.00 | 1.23 | 0.00 | 1.02 | 16.21 | 88.93 | -53.46 | 74.64 | 0.8023 | 612.0 | 534.6 | |
| 0.00 | 1.06 | 0.00 | 0.88 | 16.60 | 88.40 | -53.99 | 74.20 | 0.8079 | 436.0 | 309.3 | |
| 9.68 | 12.93 | 7.94 | 10.61 | 13.37 | 89.05 | -53.34 | 78.19 | 0.7996 | 752.2 | 402.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
