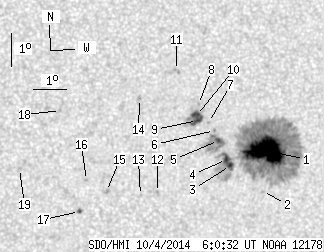

SDO HMI 2014-10-04 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.41 | 418.81 | 38.68 | 214.88 | -1.39 | 154.58 | 12.73 | 238.29 | 0.2600 | 1010.9 | 405.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.21 | 360.74 | 30.42 | 185.34 | -1.44 | 154.97 | 13.12 | 239.03 | 0.2659 | 1519.2 | 409.7 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -2.68 | 154.88 | 13.04 | 235.02 | 0.2762 | 613.0 | 491.8 | |
| 2.29 | -1.00 | 1.17 | -1.00 | -1.86 | 153.89 | 12.05 | 235.38 | 0.2546 | 1070.3 | 999999 | |
| 2.29 | -1.00 | 1.17 | -1.00 | -1.68 | 153.77 | 11.92 | 235.70 | 0.2511 | 1224.6 | 999999 | |
| 2.11 | 23.93 | 1.08 | 12.21 | -1.09 | 153.52 | 11.67 | 237.09 | 0.2421 | 1259.4 | 655.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -0.79 | 153.40 | 11.55 | 237.88 | 0.2375 | 957.0 | 814.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -0.54 | 153.21 | 11.37 | 238.35 | 0.2326 | 856.0 | 705.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 0.01 | 152.91 | 11.06 | 239.71 | 0.2232 | 801.0 | 664.4 | |
| 4.58 | 16.54 | 2.33 | 8.41 | -0.47 | 152.88 | 11.03 | 237.81 | 0.2271 | 1149.9 | 696.7 | |
| 4.05 | -9.00 | 2.06 | -9.00 | -0.32 | 152.85 | 11.00 | 238.30 | 0.2253 | 1178.7 | 999999 | |
| 0.00 | 2.64 | 0.00 | 1.34 | 1.05 | 152.24 | 10.39 | 242.41 | 0.2045 | 656.0 | 691.4 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -2.63 | 151.67 | 9.82 | 227.14 | 0.2335 | -761.0 | -516.2 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -2.71 | 151.15 | 9.30 | 225.32 | 0.2281 | -473.0 | -335.1 | |
| 0.00 | 2.02 | 0.00 | 1.02 | 0.23 | 151.11 | 9.26 | 235.93 | 0.1953 | -871.0 | -655.0 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -2.57 | 150.11 | 8.27 | 222.36 | 0.2142 | -873.0 | -877.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -2.22 | 149.51 | 7.66 | 221.27 | 0.2029 | -869.0 | -717.4 | |
| 0.88 | 1.67 | 0.45 | 0.85 | -3.16 | 149.30 | 7.45 | 217.63 | 0.2131 | -1051.8 | -874.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -0.09 | 148.72 | 6.87 | 226.10 | 0.1668 | -829.0 | -612.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -1.83 | 147.48 | 5.64 | 214.01 | 0.1763 | -807.0 | -596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
