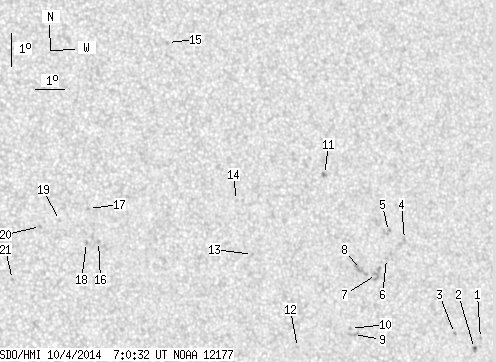

SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 41.54 | 0.31 | 23.24 | 12.19 | 168.51 | 27.21 | 284.44 | 0.4632 | 112.9 | -165.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.62 | 9.71 | 174.04 | 32.74 | 277.78 | 0.5402 | -791.0 | -650.4 | |
| 0.53 | 2.20 | 0.31 | 1.29 | 9.42 | 173.79 | 32.49 | 277.27 | 0.5363 | -889.0 | -711.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 9.91 | 173.13 | 31.83 | 278.26 | 0.5270 | -656.0 | -632.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.84 | 171.70 | 30.40 | 284.18 | 0.5109 | -775.0 | -570.9 | |
| 0.00 | 2.02 | 0.00 | 1.16 | 13.11 | 171.16 | 29.86 | 284.88 | 0.5038 | -546.0 | -589.3 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 12.30 | 170.99 | 29.69 | 283.34 | 0.4993 | -809.0 | -678.7 | |
| 0.00 | 7.30 | 0.00 | 4.15 | 11.84 | 170.58 | 29.28 | 282.53 | 0.4923 | -831.0 | -675.8 | |
| 0.00 | 7.04 | 0.00 | 3.98 | 12.03 | 170.04 | 28.74 | 283.05 | 0.4847 | -764.0 | -738.2 | |
| 0.00 | 3.96 | 0.00 | 2.23 | 10.09 | 169.58 | 28.28 | 279.13 | 0.4744 | 763.0 | 635.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | 10.27 | 169.50 | 28.20 | 279.54 | 0.4734 | 737.0 | 506.2 | |
| 0.00 | 2.20 | 0.00 | 1.24 | 14.95 | 169.16 | 27.86 | 289.38 | 0.4805 | -835.0 | -701.6 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 9.80 | 167.63 | 26.34 | 278.87 | 0.4443 | 757.0 | 560.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 12.67 | 166.38 | 25.09 | 285.78 | 0.4317 | 765.0 | 616.3 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 14.32 | 166.03 | 24.73 | 289.71 | 0.4323 | 646.0 | 418.3 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 19.23 | 164.32 | 23.02 | 301.69 | 0.4358 | 801.0 | 640.2 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 13.28 | 161.31 | 20.01 | 290.39 | 0.3568 | 885.0 | 722.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 14.29 | 161.07 | 19.77 | 293.29 | 0.3584 | 797.0 | 602.1 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 13.27 | 160.91 | 19.61 | 290.67 | 0.3507 | 887.0 | 733.3 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 13.97 | 160.09 | 18.79 | 293.33 | 0.3419 | 863.0 | 659.1 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 13.81 | 159.46 | 18.16 | 293.52 | 0.3315 | 867.0 | 717.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 12.24 | 158.43 | 17.13 | 289.85 | 0.3075 | 809.0 | 559.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
