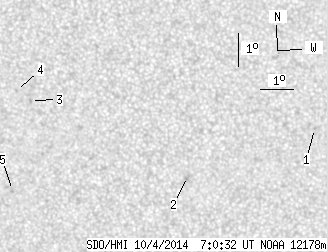

SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.21 | 0.00 | 3.66 | -4.54 | 143.00 | 1.70 | 187.49 | 0.2033 | -215.8 | -39.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.54 | -4.02 | 148.70 | 7.40 | 215.11 | 0.2243 | 879.0 | 681.1 | |
| 0.00 | 2.64 | 0.00 | 1.34 | -5.44 | 144.87 | 3.57 | 196.60 | 0.2177 | 670.0 | 564.0 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -3.10 | 140.14 | -1.16 | 173.14 | 0.1698 | -946.0 | -707.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -2.80 | 139.72 | -1.58 | 170.40 | 0.1657 | -775.0 | -608.0 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -5.85 | 139.59 | -1.71 | 172.14 | 0.2179 | -907.0 | -779.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
