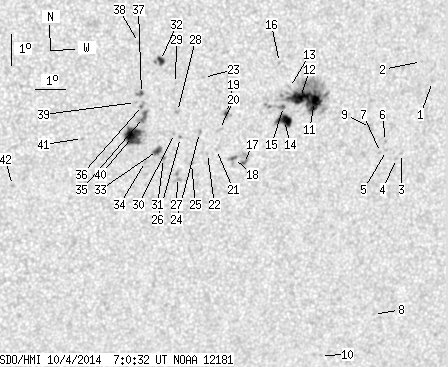

SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.14 | 217.40 | 42.12 | 122.02 | -12.72 | 161.68 | 20.38 | 226.22 | 0.4716 | 179.3 | 142.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.82 | -11.85 | 167.67 | 26.37 | 235.02 | 0.5326 | 646.0 | 467.7 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -11.19 | 167.23 | 25.93 | 235.61 | 0.5219 | 676.0 | 647.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -14.09 | 166.86 | 25.56 | 230.76 | 0.5424 | 595.0 | 446.1 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -14.24 | 166.70 | 25.40 | 230.36 | 0.5421 | 509.0 | 399.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -13.97 | 166.33 | 25.03 | 230.35 | 0.5353 | 657.0 | 526.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -13.68 | 166.26 | 24.96 | 230.71 | 0.5319 | 820.0 | 673.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -14.02 | 166.13 | 24.83 | 230.05 | 0.5336 | 725.0 | 574.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -19.32 | 166.63 | 25.33 | 223.45 | 0.5893 | 539.0 | 454.7 | |
| 0.00 | 3.34 | 0.00 | 1.94 | -13.20 | 165.70 | 24.40 | 230.79 | 0.5212 | 644.0 | 636.9 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -20.61 | 164.98 | 23.68 | 220.03 | 0.5868 | 640.0 | 537.8 | |
| 16.89 | 89.30 | 9.59 | 50.53 | -12.28 | 163.73 | 22.43 | 229.85 | 0.4898 | 926.9 | 465.0 | |
| 19.27 | -11.00 | 10.89 | -11.00 | -12.13 | 163.25 | 21.95 | 229.48 | 0.4828 | 1154.6 | 999999 | |
| 0.00 | 2.29 | 0.00 | 1.29 | -11.80 | 162.86 | 21.56 | 229.51 | 0.4750 | 209.0 | 227.4 | |
| 10.47 | 14.69 | 5.92 | 8.31 | -12.84 | 162.79 | 21.49 | 227.75 | 0.4844 | 937.4 | 652.5 | |
| 0.79 | 6.77 | 0.45 | 3.81 | -12.39 | 162.71 | 21.41 | 228.36 | 0.4791 | 872.8 | 754.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | -10.99 | 162.47 | 21.17 | 230.33 | 0.4625 | -536.0 | -359.9 | |
| 0.44 | 12.93 | 0.25 | 7.30 | -14.16 | 161.55 | 20.25 | 224.05 | 0.4847 | 975.2 | 696.0 | |
| 0.97 | -17.00 | 0.55 | -17.00 | -13.98 | 161.21 | 19.91 | 223.82 | 0.4791 | 995.8 | 999999 | |
| 1.06 | 2.64 | 0.59 | 1.47 | -12.53 | 160.85 | 19.56 | 225.54 | 0.4597 | 585.5 | 505.2 | |
| 0.00 | 2.64 | 0.00 | 1.47 | -13.03 | 160.67 | 19.37 | 224.47 | 0.4631 | 11.0 | 94.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -13.67 | 160.62 | 19.32 | 223.44 | 0.4695 | -611.0 | -518.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -13.79 | 160.34 | 19.04 | 222.84 | 0.4678 | 710.0 | 589.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -11.36 | 160.02 | 18.72 | 226.20 | 0.4379 | 578.0 | 395.3 | |
| 0.00 | 2.11 | 0.00 | 1.17 | -13.10 | 160.02 | 18.72 | 223.40 | 0.4569 | -565.0 | -516.5 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -14.09 | 159.84 | 18.54 | 221.64 | 0.4660 | -737.0 | -570.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.24 | 159.41 | 18.11 | 222.25 | 0.4520 | -746.0 | -478.8 | |
| 0.00 | 5.28 | 0.00 | 2.95 | -14.52 | 159.42 | 18.12 | 220.37 | 0.4668 | -572.0 | -538.4 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -12.41 | 159.25 | 17.96 | 223.29 | 0.4409 | -752.0 | -712.8 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -11.52 | 159.13 | 17.83 | 224.54 | 0.4296 | 597.0 | 422.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -13.10 | 159.21 | 17.91 | 222.13 | 0.4483 | -744.0 | -611.5 | |
| 0.00 | 1.76 | 0.00 | 0.98 | -13.89 | 158.91 | 17.61 | 220.48 | 0.4544 | -775.0 | -597.2 | |
| 3.08 | 5.63 | 1.68 | 3.06 | -10.77 | 158.60 | 17.30 | 224.93 | 0.4155 | -930.5 | -752.5 | |
| 2.99 | 5.10 | 1.66 | 2.83 | -13.63 | 158.70 | 17.40 | 220.52 | 0.4491 | -865.4 | -695.8 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -13.96 | 158.33 | 17.04 | 219.43 | 0.4495 | -708.0 | -502.4 | |
| 0.00 | 7.74 | 0.00 | 4.25 | -12.56 | 158.17 | 16.87 | 221.28 | 0.4312 | -1010.0 | -904.0 | |
| 0.00 | 2.73 | 0.00 | 1.49 | -12.17 | 158.11 | 16.81 | 221.78 | 0.4261 | -1041.0 | -856.4 | |
| 0.88 | 3.26 | 0.48 | 1.78 | -11.79 | 158.06 | 16.76 | 222.30 | 0.4211 | -979.5 | -886.9 | |
| 0.00 | 1.85 | 0.00 | 1.00 | -10.18 | 157.87 | 16.57 | 224.72 | 0.4006 | 666.0 | 546.9 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -12.07 | 157.88 | 16.58 | 221.55 | 0.4225 | -918.0 | -802.3 | |
| 18.30 | 23.93 | 10.06 | 13.15 | -13.15 | 157.86 | 16.56 | 219.84 | 0.4350 | -1047.9 | -738.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -13.16 | 156.26 | 14.96 | 216.99 | 0.4195 | -646.0 | -529.9 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -14.60 | 154.11 | 12.81 | 210.93 | 0.4194 | -612.0 | -550.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
