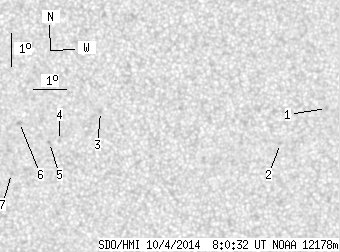

SDO HMI 2014-10-04 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.61 | 0.00 | 4.84 | -4.56 | 142.41 | 1.65 | 187.57 | 0.2053 | -364.0 | -307.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.76 | -3.94 | 148.54 | 7.79 | 216.75 | 0.2270 | 845.0 | 681.2 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -4.99 | 147.16 | 6.40 | 209.13 | 0.2293 | 778.0 | 592.3 | |
| 0.00 | 1.50 | 0.00 | 0.75 | -3.96 | 141.72 | 0.97 | 185.30 | 0.1841 | -806.0 | -644.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -4.84 | 140.49 | -0.26 | 178.68 | 0.1986 | -731.0 | -604.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -4.91 | 140.19 | -0.56 | 177.18 | 0.1998 | -955.0 | -757.2 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -4.29 | 139.29 | -1.46 | 172.29 | 0.1908 | -964.0 | -823.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -5.86 | 139.04 | -1.71 | 172.13 | 0.2179 | -715.0 | -572.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
