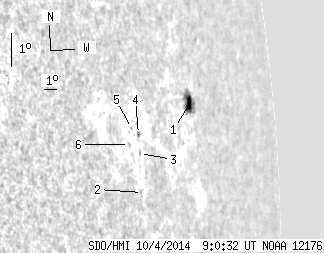

SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 23.93 | 10.64 | 38.04 | 6.99 | 212.66 | 72.46 | 275.24 | 0.9512 | -84.1 | -39.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.42 | 19.44 | 10.64 | 32.20 | 7.11 | 213.46 | 73.25 | 275.43 | 0.9558 | -256.8 | -115.8 | |
| 0.00 | 0.62 | 0.00 | 0.81 | 4.96 | 208.43 | 68.22 | 272.70 | 0.9278 | 184.0 | 185.6 | |
| 0.00 | 0.79 | 0.00 | 1.04 | 6.13 | 208.47 | 68.27 | 273.97 | 0.9274 | 306.0 | 172.3 | |
| 0.00 | 1.41 | 0.00 | 1.85 | 6.70 | 208.55 | 68.35 | 274.59 | 0.9277 | 256.0 | 176.2 | |
| 0.00 | 0.79 | 0.00 | 1.02 | 6.93 | 208.05 | 67.84 | 274.80 | 0.9243 | 371.0 | 338.1 | |
| 0.00 | 0.88 | 0.00 | 1.12 | 6.48 | 207.76 | 67.55 | 274.29 | 0.9226 | 299.0 | 364.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
