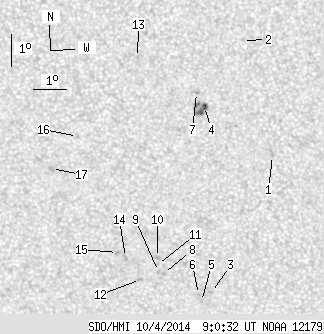

SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.94 | 37.07 | 1.00 | 19.44 | -12.45 | 139.28 | -0.92 | 177.45 | 0.3281 | -56.6 | 86.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.53 | 142.47 | 2.27 | 187.13 | 0.3140 | 905.0 | 695.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -7.93 | 141.54 | 1.34 | 185.29 | 0.2522 | 763.0 | 577.4 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -15.90 | 140.61 | 0.40 | 181.02 | 0.3837 | 724.0 | 623.4 | |
| 1.94 | 12.76 | 1.00 | 6.59 | -9.98 | 140.39 | 0.19 | 180.65 | 0.2858 | 1127.5 | 874.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -16.20 | 140.30 | 0.09 | 180.23 | 0.3883 | 836.0 | 743.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -15.97 | 140.20 | -0.00 | 179.99 | 0.3846 | 599.0 | 605.9 | |
| 0.00 | 1.94 | 0.00 | 1.00 | -9.54 | 140.15 | -0.06 | 179.80 | 0.2784 | 867.0 | 709.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.29 | 139.12 | -1.09 | 177.18 | 0.3740 | -894.0 | -691.9 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -15.22 | 138.96 | -1.24 | 176.77 | 0.3731 | -785.0 | -620.6 | |
| 0.00 | 2.29 | 0.00 | 1.22 | -14.77 | 138.93 | -1.27 | 176.62 | 0.3658 | -929.0 | -756.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.00 | 138.93 | -1.27 | 176.65 | 0.3695 | -967.0 | -721.9 | |
| 0.00 | 2.29 | 0.00 | 1.22 | -15.48 | 138.40 | -1.81 | 175.37 | 0.3779 | -823.0 | -622.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.45 | 138.36 | -1.84 | 172.99 | 0.2620 | 849.0 | 596.8 | |
| 0.00 | 2.90 | 0.00 | 1.55 | -14.77 | 137.94 | -2.27 | 174.00 | 0.3672 | -858.0 | -687.6 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -14.61 | 137.69 | -2.51 | 173.30 | 0.3650 | -900.0 | -730.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.93 | 136.51 | -3.69 | 168.10 | 0.3081 | -680.0 | -533.7 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -11.95 | 135.70 | -4.51 | 166.36 | 0.3275 | -797.0 | -694.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
