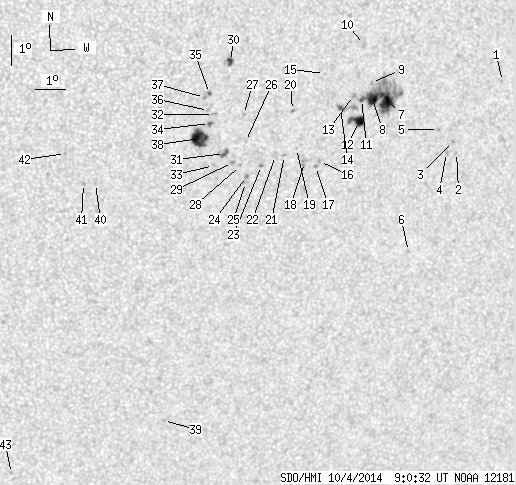

SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.18 | 186.55 | 32.23 | 105.64 | -12.73 | 161.74 | 21.54 | 227.81 | 0.4851 | 108.7 | 273.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | -11.82 | 167.78 | 27.57 | 236.27 | 0.5469 | 631.0 | 502.7 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -14.00 | 166.44 | 26.23 | 231.62 | 0.5492 | 607.0 | 534.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -13.64 | 166.29 | 26.09 | 232.00 | 0.5444 | 784.0 | 680.4 | |
| 0.00 | 2.46 | 0.00 | 1.45 | -13.98 | 166.09 | 25.89 | 231.28 | 0.5451 | 719.0 | 649.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -13.23 | 165.73 | 25.52 | 232.01 | 0.5343 | 828.0 | 752.7 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -17.13 | 165.20 | 24.99 | 225.88 | 0.5645 | 710.0 | 637.7 | |
| 14.87 | 80.31 | 8.51 | 45.90 | -12.22 | 163.86 | 23.66 | 231.47 | 0.5034 | 1030.7 | 551.7 | |
| 9.94 | -7.00 | 5.67 | -7.00 | -12.13 | 163.39 | 23.18 | 231.03 | 0.4970 | 1194.5 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -11.62 | 163.31 | 23.10 | 231.76 | 0.4914 | 760.0 | 677.3 | |
| 0.00 | 2.99 | 0.00 | 1.68 | -10.41 | 162.98 | 22.77 | 233.37 | 0.4763 | -587.0 | -510.5 | |
| 0.70 | -7.00 | 0.40 | -7.00 | -12.15 | 163.02 | 22.82 | 230.56 | 0.4929 | 990.2 | 999999 | |
| 7.30 | 12.93 | 4.17 | 7.38 | -12.81 | 163.02 | 22.81 | 229.51 | 0.4991 | 939.8 | 707.6 | |
| 0.00 | 2.55 | 0.00 | 1.45 | -12.01 | 162.74 | 22.54 | 230.44 | 0.4883 | 881.0 | 742.4 | |
| 1.23 | 9.50 | 0.70 | 5.39 | -12.37 | 162.34 | 22.14 | 229.36 | 0.4871 | 917.8 | 733.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.27 | 161.72 | 21.52 | 230.35 | 0.4692 | 538.0 | 479.5 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -14.06 | 161.80 | 21.60 | 226.05 | 0.4980 | 974.0 | 801.8 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -14.22 | 161.69 | 21.48 | 225.66 | 0.4983 | 911.0 | 756.3 | |
| 0.00 | 4.05 | 0.00 | 2.30 | -14.07 | 161.31 | 21.10 | 225.37 | 0.4927 | 756.0 | 813.8 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -13.61 | 161.00 | 20.79 | 225.64 | 0.4846 | -633.0 | -493.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -12.39 | 160.76 | 20.56 | 227.21 | 0.4693 | 474.0 | 629.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -13.82 | 160.62 | 20.42 | 224.80 | 0.4827 | -690.0 | -494.0 | |
| 0.00 | 3.43 | 0.00 | 1.93 | -13.80 | 160.32 | 20.12 | 224.40 | 0.4794 | 500.0 | 414.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -14.11 | 159.89 | 19.69 | 223.33 | 0.4780 | -636.0 | -544.0 | |
| 0.00 | 2.11 | 0.00 | 1.19 | -14.44 | 159.43 | 19.22 | 222.17 | 0.4769 | -754.0 | -660.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.63 | 159.41 | 19.21 | 221.87 | 0.4789 | -701.0 | -554.5 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -13.31 | 159.30 | 19.09 | 223.65 | 0.4631 | -406.0 | -444.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -12.45 | 159.17 | 18.96 | 224.80 | 0.4522 | -695.0 | -607.5 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -14.08 | 159.20 | 18.99 | 222.36 | 0.4705 | -540.0 | -347.0 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -13.97 | 158.93 | 18.72 | 222.11 | 0.4665 | -839.0 | -655.3 | |
| 2.64 | 5.28 | 1.44 | 2.89 | -10.76 | 158.63 | 18.42 | 226.78 | 0.4279 | -885.5 | -737.0 | |
| 1.85 | 4.57 | 1.03 | 2.55 | -13.67 | 158.64 | 18.44 | 222.11 | 0.4602 | -820.1 | -721.8 | |
| 0.00 | 2.73 | 0.00 | 1.50 | -12.41 | 158.19 | 17.99 | 223.34 | 0.4412 | -875.0 | -590.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -14.04 | 158.32 | 18.11 | 221.05 | 0.4611 | -647.0 | -499.6 | |
| 0.70 | 2.29 | 0.39 | 1.26 | -12.69 | 158.08 | 17.88 | 222.73 | 0.4432 | -1001.9 | -795.8 | |
| 0.62 | 1.58 | 0.34 | 0.87 | -11.74 | 158.02 | 17.81 | 224.15 | 0.4318 | -930.1 | -798.3 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -12.28 | 158.02 | 17.82 | 223.28 | 0.4379 | -1047.0 | -694.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -11.86 | 157.86 | 17.66 | 223.70 | 0.4315 | -886.0 | -785.9 | |
| 17.33 | 21.02 | 9.58 | 11.62 | -13.16 | 157.79 | 17.59 | 221.54 | 0.4455 | -1042.7 | -780.8 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -22.44 | 157.53 | 17.33 | 209.84 | 0.5554 | 593.0 | 448.2 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.49 | 154.54 | 14.34 | 213.99 | 0.4307 | -776.0 | -629.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -14.48 | 154.16 | 13.95 | 213.29 | 0.4272 | -774.0 | -639.5 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.50 | 153.53 | 13.32 | 213.40 | 0.4088 | 860.0 | 638.9 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -24.11 | 152.58 | 12.38 | 201.08 | 0.5460 | 630.0 | 528.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
