SDO HMI 2014-10-04 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.76 | 25.96 | 0.91 | 13.60 | -12.44 | 139.60 | -0.06 | 180.04 | 0.3281 | -184.7 | 155.9 | |
|
previous
or next observation for the same group /

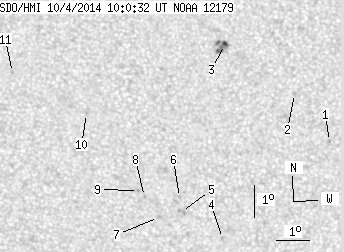

back to the solar disc SDO HMI 2014-10-04 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.07 | 143.63 | 3.98 | 191.39 | 0.3437 | 929.0 | 724.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -11.54 | 142.54 | 2.88 | 189.02 | 0.3156 | 800.0 | 615.2 | |
| 1.76 | 11.17 | 0.91 | 5.77 | -9.99 | 140.39 | 0.74 | 182.55 | 0.2862 | 1107.4 | 907.0 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -16.17 | 140.34 | 0.69 | 181.70 | 0.3880 | 892.0 | 685.2 | |
| 0.00 | 3.69 | 0.00 | 1.97 | -15.29 | 139.07 | -0.59 | 178.47 | 0.3738 | -595.0 | -635.5 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -14.84 | 139.01 | -0.65 | 178.27 | 0.3664 | -865.0 | -659.0 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -15.49 | 138.35 | -1.31 | 176.64 | 0.3774 | -833.0 | -659.1 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -14.81 | 137.92 | -1.74 | 175.40 | 0.3669 | -828.0 | -732.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -14.62 | 137.74 | -1.92 | 174.86 | 0.3640 | -950.0 | -811.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -12.17 | 136.16 | -3.50 | 169.47 | 0.3276 | -828.0 | -632.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.89 | 133.91 | -5.75 | 161.81 | 0.3163 | -745.0 | -631.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
