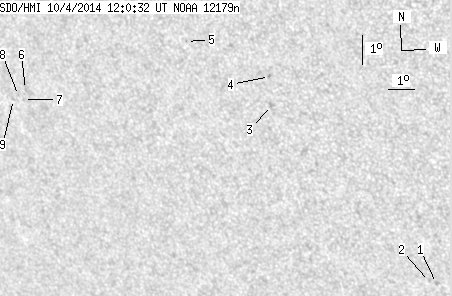

SDO HMI 2014-10-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.53 | 0.00 | 7.53 | -18.28 | 106.30 | -32.26 | 128.91 | 0.6523 | 117.2 | 201.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.28 | -22.74 | 113.38 | -25.18 | 140.68 | 0.6215 | 717.0 | 525.9 | |
| 0.00 | 0.70 | 0.00 | 0.44 | -22.68 | 113.14 | -25.42 | 140.35 | 0.6231 | 640.0 | 596.6 | |
| 0.00 | 3.43 | 0.00 | 2.15 | -17.06 | 108.51 | -30.05 | 128.86 | 0.6170 | 722.0 | 534.2 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -16.11 | 108.61 | -29.96 | 127.68 | 0.6084 | 744.0 | 625.6 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -15.16 | 105.74 | -32.82 | 123.94 | 0.6330 | 533.0 | 438.4 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -17.17 | 99.06 | -39.50 | 121.83 | 0.7177 | -614.0 | -607.9 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -17.51 | 98.89 | -39.67 | 122.14 | 0.7214 | -576.0 | -527.4 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -17.40 | 98.71 | -39.85 | 121.89 | 0.7225 | -617.0 | -576.6 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -17.54 | 98.47 | -40.09 | 121.92 | 0.7258 | -494.0 | -411.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
