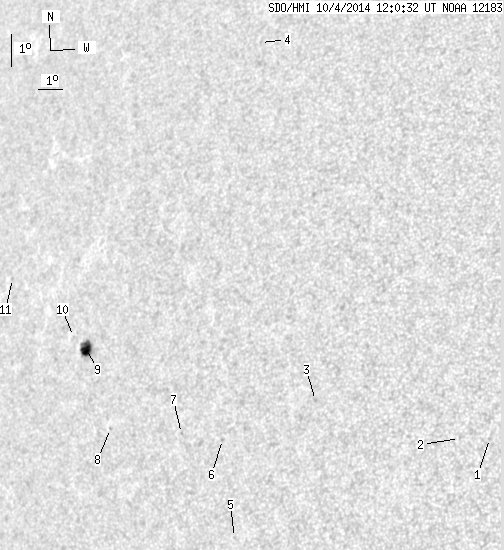

SDO HMI 2014-10-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.69 | 24.52 | 8.86 | 17.91 | 13.23 | 91.22 | -47.34 | 77.97 | 0.7324 | 316.4 | 56.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.47 | 11.82 | 105.90 | -32.66 | 78.27 | 0.5416 | 651.0 | 537.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 11.76 | 104.81 | -33.75 | 78.60 | 0.5571 | 473.0 | 285.0 | |
| 0.00 | 1.49 | 0.00 | 0.96 | 12.54 | 99.17 | -39.39 | 78.17 | 0.6352 | -737.0 | -626.6 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 23.21 | 93.70 | -44.87 | 63.92 | 0.7242 | 407.0 | 341.4 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 8.21 | 96.58 | -41.99 | 84.99 | 0.6670 | -487.0 | -418.7 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 11.10 | 95.63 | -42.93 | 80.70 | 0.6796 | -510.0 | -413.4 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 11.15 | 93.88 | -44.68 | 80.73 | 0.7013 | -457.0 | -372.7 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 11.05 | 90.75 | -47.81 | 80.99 | 0.7386 | -383.0 | -393.6 | |
| 11.69 | 15.12 | 8.86 | 11.46 | 13.34 | 89.07 | -49.49 | 78.00 | 0.7586 | 699.1 | 429.4 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 13.65 | 88.36 | -50.20 | 77.65 | 0.7666 | 487.0 | 387.4 | |
| 0.00 | 0.88 | 0.00 | 0.73 | 15.11 | 84.79 | -53.77 | 76.01 | 0.8048 | 330.0 | 296.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
