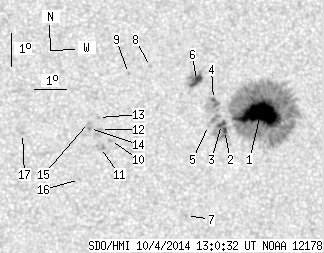

SDO HMI 2014-10-04 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.03 | 389.20 | 31.87 | 203.31 | -1.39 | 154.62 | 16.61 | 244.89 | 0.3168 | 884.5 | 390.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.29 | 317.73 | 26.31 | 166.34 | -1.40 | 155.04 | 17.03 | 245.54 | 0.3230 | 1419.7 | 400.4 | |
| 2.20 | 37.28 | 1.14 | 19.38 | -1.88 | 153.92 | 15.91 | 242.59 | 0.3099 | 1036.4 | 677.4 | |
| 2.29 | -2.00 | 1.19 | -2.00 | -1.69 | 153.82 | 15.81 | 242.97 | 0.3071 | 1110.2 | 999999 | |
| 0.62 | -2.00 | 0.32 | -2.00 | -0.93 | 153.57 | 15.56 | 244.86 | 0.2975 | 1135.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -1.71 | 153.42 | 15.41 | 242.30 | 0.3012 | 738.0 | 644.5 | |
| 5.63 | 15.39 | 2.91 | 7.95 | -0.34 | 153.04 | 15.03 | 245.92 | 0.2853 | 1112.2 | 771.0 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -4.43 | 152.77 | 14.76 | 233.71 | 0.3165 | 725.0 | 544.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 0.13 | 151.62 | 13.60 | 245.23 | 0.2602 | 735.0 | 494.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -0.07 | 150.94 | 12.93 | 243.37 | 0.2514 | -680.0 | -590.4 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -2.08 | 150.39 | 12.38 | 235.51 | 0.2611 | -814.0 | -636.8 | |
| 0.00 | 4.57 | 0.00 | 2.34 | -2.28 | 150.09 | 12.07 | 234.18 | 0.2589 | -544.0 | -710.4 | |
| 0.00 | 2.20 | 0.00 | 1.13 | -1.74 | 150.08 | 12.07 | 235.91 | 0.2535 | -787.0 | -584.2 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -1.37 | 150.02 | 12.01 | 236.98 | 0.2491 | -800.0 | -670.2 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -1.70 | 149.75 | 11.73 | 235.27 | 0.2484 | -1023.0 | -872.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -1.51 | 149.71 | 11.70 | 235.80 | 0.2462 | -753.0 | -563.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -3.24 | 149.45 | 11.44 | 229.75 | 0.2606 | -802.0 | -616.6 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -1.80 | 147.70 | 9.69 | 229.53 | 0.2221 | -897.0 | -663.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
