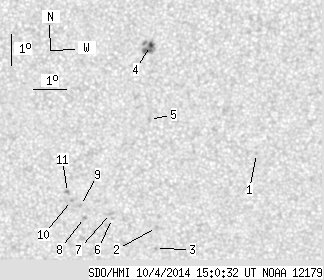

SDO HMI 2014-10-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 26.28 | 0.86 | 13.84 | -12.79 | 139.88 | 2.97 | 188.99 | 0.3366 | -96.4 | 226.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.49 | 143.71 | 6.80 | 198.62 | 0.3621 | 746.0 | 615.4 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -15.83 | 140.65 | 3.74 | 189.37 | 0.3871 | 805.0 | 689.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.51 | 140.63 | 3.72 | 189.03 | 0.3979 | 658.0 | 547.5 | |
| 1.67 | 11.60 | 0.86 | 6.01 | -10.03 | 140.39 | 3.48 | 191.83 | 0.2926 | 1149.6 | 874.6 | |
| 0.00 | 1.85 | 0.00 | 0.97 | -12.36 | 140.38 | 3.47 | 190.35 | 0.3306 | 849.0 | 610.9 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -15.53 | 139.28 | 2.36 | 186.04 | 0.3793 | -756.0 | -578.4 | |
| 0.00 | 2.46 | 0.00 | 1.32 | -15.36 | 139.21 | 2.30 | 185.92 | 0.3766 | -838.0 | -640.4 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -15.49 | 138.40 | 1.49 | 183.83 | 0.3775 | -849.0 | -682.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.10 | 138.28 | 1.36 | 183.57 | 0.3711 | -834.0 | -694.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.94 | 138.00 | 1.08 | 182.86 | 0.3682 | -851.0 | -707.1 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -14.68 | 137.87 | 0.96 | 182.56 | 0.3639 | -965.0 | -799.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
