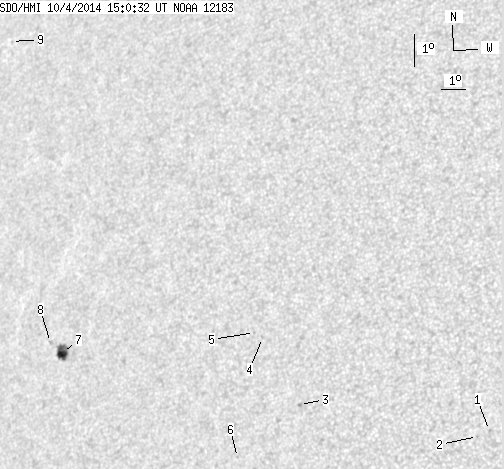

SDO HMI 2014-10-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.16 | 22.33 | 8.20 | 15.73 | 13.39 | 91.61 | -45.30 | 77.53 | 0.7073 | 354.0 | 150.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.76 | 12.15 | 106.31 | -30.60 | 77.18 | 0.5124 | 687.0 | 576.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 11.95 | 105.91 | -31.01 | 77.68 | 0.5179 | 621.0 | 547.5 | |
| 0.00 | 1.32 | 0.00 | 0.82 | 12.50 | 99.19 | -37.72 | 77.99 | 0.6129 | -717.0 | -670.3 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 14.41 | 97.37 | -39.55 | 75.27 | 0.6399 | -577.0 | -485.5 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 14.54 | 97.02 | -39.90 | 75.14 | 0.6447 | -544.0 | -505.1 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 10.74 | 97.04 | -39.87 | 81.04 | 0.6399 | -725.0 | -578.9 | |
| 11.16 | 14.77 | 8.20 | 10.84 | 13.32 | 89.04 | -47.87 | 77.92 | 0.7404 | 737.4 | 482.4 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 13.57 | 88.41 | -48.50 | 77.63 | 0.7477 | 503.0 | 374.0 | |
| 0.00 | 0.44 | 0.00 | 0.37 | 22.44 | 82.82 | -54.09 | 67.01 | 0.8153 | 440.0 | 388.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
