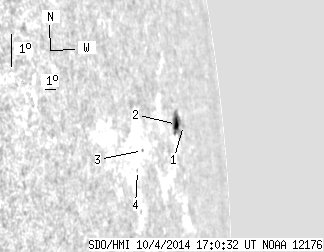

SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.66 | 18.97 | 10.24 | 41.48 | 7.04 | 213.33 | 77.52 | 275.74 | 0.9748 | -133.2 | -20.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 2.50 | 6.93 | 214.43 | 78.62 | 275.73 | 0.9790 | 143.0 | 198.0 | |
| 4.66 | 16.87 | 10.24 | 37.24 | 7.07 | 213.46 | 77.65 | 275.78 | 0.9754 | -191.7 | -41.0 | |
| 0.00 | 0.79 | 0.00 | 1.32 | 6.76 | 209.13 | 73.31 | 275.08 | 0.9563 | -22.0 | -39.0 | |
| 0.00 | 0.26 | 0.00 | 0.42 | 6.23 | 208.40 | 72.59 | 274.46 | 0.9528 | 78.0 | 94.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
