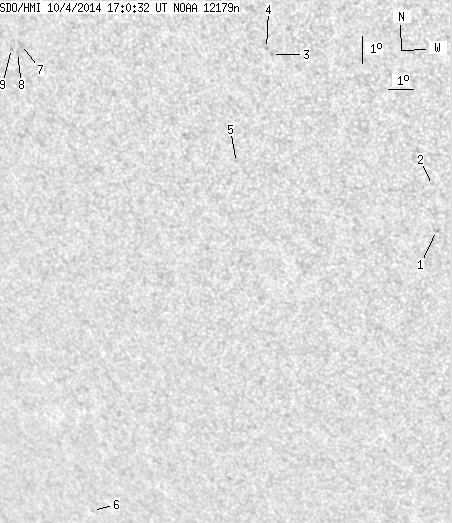

SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.19 | 0.00 | 8.81 | -19.90 | 103.25 | -32.56 | 130.60 | 0.6659 | 72.9 | -60.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.11 | 0.00 | 1.30 | -22.66 | 113.32 | -22.49 | 143.67 | 0.5980 | 565.0 | 563.2 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -21.13 | 113.44 | -22.37 | 142.12 | 0.5804 | 545.0 | 479.0 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -17.03 | 108.46 | -27.35 | 131.44 | 0.5881 | 741.0 | 611.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -16.84 | 108.32 | -27.49 | 131.04 | 0.5880 | 738.0 | 595.8 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -20.71 | 106.51 | -29.30 | 134.15 | 0.6402 | 481.0 | 480.0 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -33.94 | 95.76 | -40.05 | 139.59 | 0.8256 | -479.0 | -345.9 | |
| 0.00 | 3.69 | 0.00 | 2.51 | -17.29 | 99.13 | -36.68 | 123.85 | 0.6890 | -560.0 | -443.3 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -17.56 | 98.91 | -36.90 | 124.04 | 0.6931 | -700.0 | -636.2 | |
| 0.00 | 1.67 | 0.00 | 1.15 | -17.45 | 98.70 | -37.11 | 123.75 | 0.6945 | -675.0 | -542.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
