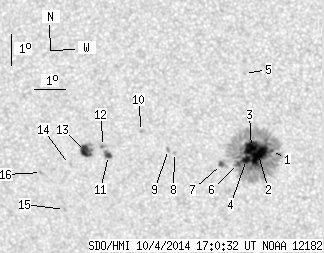

SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.13 | 235.05 | 29.53 | 127.91 | -13.20 | 121.46 | -14.35 | 144.29 | 0.4146 | 600.9 | 323.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.88 | 205.88 | 0.47 | 111.66 | -13.08 | 122.65 | -13.16 | 146.32 | 0.4017 | 1016.3 | 397.3 | |
| 20.21 | -1.00 | 10.95 | -1.00 | -13.22 | 122.23 | -13.58 | 145.68 | 0.4073 | 1380.6 | 999999 | |
| 13.00 | -1.00 | 7.04 | -1.00 | -13.00 | 122.02 | -13.79 | 144.96 | 0.4063 | 1281.1 | 999999 | |
| 5.18 | -1.00 | 2.82 | -1.00 | -13.39 | 121.84 | -13.97 | 145.16 | 0.4130 | 1014.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.66 | 121.92 | -13.89 | 141.12 | 0.3774 | 791.0 | 582.0 | |
| 1.32 | -1.00 | 0.72 | -1.00 | -13.52 | 121.57 | -14.24 | 144.85 | 0.4171 | 685.3 | 999999 | |
| 1.76 | -1.00 | 0.96 | -1.00 | -13.57 | 121.03 | -14.78 | 143.90 | 0.4228 | 894.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -13.23 | 119.55 | -16.26 | 140.77 | 0.4328 | 680.0 | 598.5 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -13.14 | 119.36 | -16.45 | 140.31 | 0.4336 | 685.0 | 588.0 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -12.60 | 118.53 | -17.28 | 138.08 | 0.4357 | 913.0 | 585.8 | |
| 2.64 | 4.92 | 1.47 | 2.74 | -13.40 | 117.40 | -18.41 | 137.52 | 0.4567 | -977.7 | -809.4 | |
| 0.00 | 2.28 | 0.00 | 1.27 | -13.12 | 117.26 | -18.55 | 136.87 | 0.4550 | -1134.0 | -862.8 | |
| 9.14 | 13.62 | 5.10 | 7.60 | -13.30 | 116.66 | -19.15 | 136.24 | 0.4634 | -980.9 | -756.2 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -13.74 | 116.10 | -19.71 | 136.08 | 0.4742 | -714.0 | -640.7 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -15.19 | 115.80 | -20.01 | 137.76 | 0.4932 | -862.0 | -735.5 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -14.03 | 115.15 | -20.66 | 135.17 | 0.4874 | -609.0 | -612.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
