SDO HMI 2014-10-04 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.55 | 0.00 | 12.38 | -12.40 | 139.68 | 4.42 | 193.33 | 0.3351 | 72.9 | 319.7 | |
|
previous
or next observation for the same group /

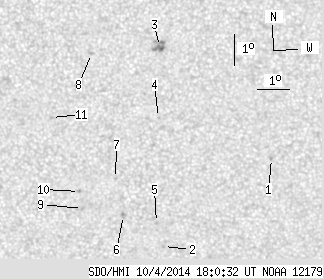

back to the solar disc SDO HMI 2014-10-04 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | -13.70 | 143.90 | 8.64 | 202.94 | 0.3761 | 795.0 | 656.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -16.49 | 140.61 | 5.35 | 192.88 | 0.4026 | 748.0 | 657.0 | |
| 0.00 | 10.37 | 0.00 | 5.38 | -10.11 | 140.35 | 5.09 | 196.99 | 0.3005 | 1202.0 | 928.0 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -12.34 | 140.36 | 5.10 | 195.04 | 0.3362 | 684.0 | 622.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.71 | 140.37 | 5.11 | 192.77 | 0.3895 | 621.0 | 543.1 | |
| 0.00 | 2.64 | 0.00 | 1.41 | -15.47 | 139.33 | 4.08 | 190.36 | 0.3824 | -964.0 | -735.2 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.28 | 139.06 | 3.81 | 190.27 | 0.3625 | -807.0 | -627.0 | |
| 0.00 | 1.67 | 0.00 | 0.87 | -10.31 | 138.28 | 3.02 | 190.15 | 0.2957 | 863.0 | 675.8 | |
| 0.00 | 1.76 | 0.00 | 0.94 | -15.23 | 138.05 | 2.79 | 187.23 | 0.3755 | -689.0 | -579.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -14.68 | 137.95 | 2.70 | 187.16 | 0.3664 | -932.0 | -739.9 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -12.32 | 137.07 | 1.81 | 185.46 | 0.3261 | -719.0 | -505.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
