SDO HMI 2014-10-04 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.61 | 19.16 | 8.64 | 20.29 | -19.07 | 77.81 | -57.45 | 115.68 | 0.8842 | 453.3 | 168.3 | |
|
previous
or next observation for the same group /

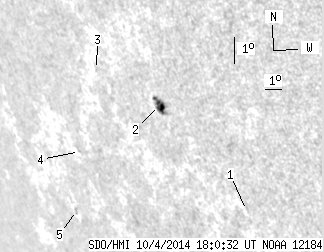

back to the solar disc SDO HMI 2014-10-04 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.92 | -21.43 | 82.54 | -52.72 | 119.98 | 0.8571 | 513.0 | 455.9 | |
| 8.61 | 14.06 | 8.64 | 14.11 | -18.27 | 79.36 | -55.90 | 115.33 | 0.8719 | 633.2 | 380.7 | |
| 0.00 | 1.23 | 0.00 | 1.35 | -17.43 | 76.06 | -59.20 | 113.32 | 0.8943 | 428.0 | 415.2 | |
| 0.00 | 0.88 | 0.00 | 1.10 | -20.41 | 73.11 | -62.15 | 115.57 | 0.9203 | -350.0 | -351.6 | |
| 0.00 | 2.02 | 0.00 | 2.81 | -22.58 | 71.19 | -64.07 | 117.24 | 0.9355 | -333.0 | -254.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
