SDO HMI 2014-10-04 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.35 | 194.21 | 37.95 | 116.89 | -12.42 | 163.02 | 28.87 | 236.40 | 0.5676 | 251.7 | 110.8 | |
|
previous
or next observation for the same group /

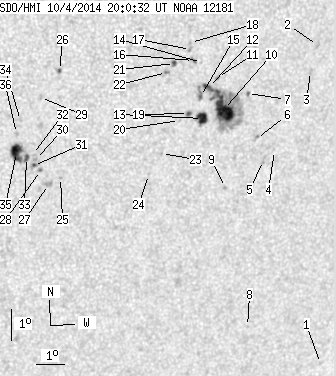

back to the solar disc SDO HMI 2014-10-04 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.79 | -20.84 | 169.83 | 35.67 | 231.09 | 0.7028 | 613.0 | 417.8 | |
| 0.00 | 2.90 | 0.00 | 1.81 | -10.43 | 167.70 | 33.55 | 243.30 | 0.6106 | 826.0 | 616.3 | |
| 0.00 | 2.11 | 0.00 | 1.32 | -11.24 | 167.54 | 33.39 | 242.01 | 0.6136 | 496.0 | 518.5 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -13.67 | 166.57 | 32.42 | 237.78 | 0.6180 | 472.0 | 417.4 | |
| 0.00 | 3.34 | 0.00 | 2.09 | -13.96 | 166.21 | 32.06 | 237.08 | 0.6159 | 407.0 | 520.9 | |
| 0.00 | 2.37 | 0.00 | 1.47 | -13.24 | 165.85 | 31.70 | 237.81 | 0.6066 | 732.0 | 669.8 | |
| 0.53 | 1.76 | 0.32 | 1.08 | -11.79 | 165.33 | 31.18 | 239.51 | 0.5903 | -191.8 | -106.2 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -19.39 | 166.65 | 32.49 | 230.32 | 0.6608 | 497.0 | 438.0 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -14.75 | 164.96 | 30.80 | 234.93 | 0.6073 | 716.0 | 538.1 | |
| 31.54 | 97.71 | 19.21 | 59.55 | -12.24 | 164.53 | 30.38 | 238.17 | 0.5838 | 980.4 | 312.4 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -11.21 | 164.19 | 30.04 | 239.44 | 0.5724 | 700.0 | 672.7 | |
| 3.87 | -10.00 | 2.33 | -10.00 | -11.51 | 163.91 | 29.76 | 238.74 | 0.5711 | 998.1 | 999999 | |
| 8.17 | 10.90 | 4.95 | 6.59 | -12.48 | 163.81 | 29.66 | 237.20 | 0.5770 | 945.5 | 677.2 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -10.71 | 163.57 | 29.42 | 239.69 | 0.5612 | -385.0 | -292.4 | |
| 0.79 | 5.89 | 0.48 | 3.54 | -11.78 | 163.66 | 29.50 | 238.12 | 0.5700 | 1023.0 | 873.7 | |
| 0.00 | 2.90 | 0.00 | 1.73 | -10.63 | 163.28 | 29.13 | 239.57 | 0.5571 | -765.0 | -663.6 | |
| 0.00 | 2.55 | 0.00 | 1.51 | -10.27 | 163.14 | 28.99 | 240.00 | 0.5528 | -820.0 | -650.3 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -10.05 | 163.12 | 28.97 | 240.34 | 0.5510 | -700.0 | -602.4 | |
| 1.23 | 2.46 | 0.74 | 1.48 | -12.29 | 163.30 | 29.14 | 237.02 | 0.5694 | 895.7 | 776.2 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -12.50 | 163.00 | 28.85 | 236.45 | 0.5675 | 426.0 | 472.8 | |
| 1.41 | 2.72 | 0.83 | 1.61 | -10.68 | 162.63 | 28.47 | 238.90 | 0.5493 | -828.1 | -666.3 | |
| 0.00 | 1.93 | 0.00 | 1.14 | -10.95 | 162.38 | 28.22 | 238.25 | 0.5481 | -753.0 | -599.2 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -13.51 | 162.50 | 28.35 | 234.47 | 0.5695 | 690.0 | 536.6 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -14.16 | 162.13 | 27.98 | 233.17 | 0.5705 | 757.0 | 627.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.09 | 159.08 | 24.93 | 230.07 | 0.5352 | -671.0 | -587.0 | |
| 0.79 | 2.81 | 0.45 | 1.61 | -10.69 | 158.70 | 24.55 | 234.97 | 0.5006 | -777.0 | -506.2 | |
| 0.00 | 4.66 | 0.00 | 2.72 | -14.30 | 158.69 | 24.54 | 229.33 | 0.5327 | -674.0 | -632.1 | |
| 0.00 | 1.85 | 0.00 | 1.07 | -13.83 | 158.37 | 24.22 | 229.64 | 0.5248 | -709.0 | -604.1 | |
| 0.00 | 2.11 | 0.00 | 1.21 | -11.51 | 158.14 | 23.98 | 232.99 | 0.5008 | -622.0 | -600.0 | |
| 0.00 | 1.67 | 0.00 | 0.97 | -13.47 | 158.16 | 24.01 | 229.94 | 0.5190 | -820.0 | -693.2 | |
| 0.88 | 3.87 | 0.51 | 2.24 | -13.66 | 158.11 | 23.96 | 229.60 | 0.5203 | -810.1 | -650.7 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -13.31 | 158.04 | 23.89 | 230.05 | 0.5161 | -282.0 | -467.3 | |
| 1.58 | 22.76 | 0.91 | 13.09 | -13.39 | 157.85 | 23.70 | 229.69 | 0.5147 | -827.3 | -673.9 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -12.20 | 157.53 | 23.38 | 231.16 | 0.4999 | -707.0 | -635.8 | |
| 12.56 | -33.00 | 7.22 | -33.00 | -13.22 | 157.49 | 23.34 | 229.53 | 0.5090 | -979.6 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.01 | -12.61 | 157.43 | 23.28 | 230.40 | 0.5026 | -536.0 | -375.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
