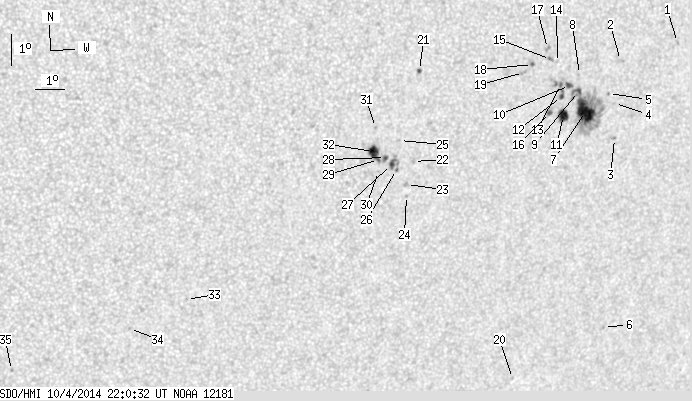

SDO HMI 2014-10-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.92 | 187.16 | 33.38 | 114.02 | -12.47 | 163.10 | 30.05 | 237.36 | 0.5826 | 197.2 | 149.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 1.00 | -10.36 | 167.84 | 34.79 | 244.25 | 0.6255 | 632.0 | 540.8 | |
| 0.00 | 2.90 | 0.00 | 1.80 | -10.79 | 165.80 | 32.75 | 242.21 | 0.6029 | 156.0 | 291.9 | |
| 0.00 | 1.67 | 0.00 | 1.05 | -13.25 | 165.92 | 32.87 | 238.72 | 0.6204 | 709.0 | 608.8 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -12.13 | 165.75 | 32.71 | 240.19 | 0.6110 | 577.0 | 445.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -11.80 | 165.49 | 32.44 | 240.48 | 0.6057 | -291.0 | -233.8 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -19.43 | 166.69 | 33.64 | 231.21 | 0.6727 | 580.0 | 466.1 | |
| 26.36 | 113.62 | 16.29 | 70.07 | -12.32 | 164.73 | 31.68 | 239.12 | 0.6000 | 967.3 | 394.1 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -11.13 | 164.36 | 31.31 | 240.60 | 0.5875 | 725.0 | 607.7 | |
| 1.93 | -7.00 | 1.19 | -7.00 | -11.67 | 164.39 | 31.34 | 239.82 | 0.5915 | 864.6 | 999999 | |
| 2.20 | -7.00 | 1.34 | -7.00 | -11.46 | 164.04 | 30.99 | 239.85 | 0.5858 | 917.4 | 999999 | |
| 8.26 | 11.16 | 5.06 | 6.84 | -12.40 | 163.94 | 30.90 | 238.38 | 0.5912 | 907.1 | 626.9 | |
| 1.49 | -7.00 | 0.91 | -7.00 | -11.79 | 163.80 | 30.75 | 239.15 | 0.5851 | 868.2 | 999999 | |
| 0.62 | -7.00 | 0.37 | -7.00 | -11.41 | 163.71 | 30.67 | 239.66 | 0.5815 | 953.4 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -10.71 | 163.53 | 30.48 | 240.58 | 0.5744 | -335.0 | -250.5 | |
| 0.00 | 2.11 | 0.00 | 1.27 | -10.60 | 163.27 | 30.22 | 240.54 | 0.5704 | -773.0 | -622.2 | |
| 1.32 | 4.13 | 0.80 | 2.52 | -12.27 | 163.43 | 30.38 | 238.13 | 0.5841 | 877.2 | 702.5 | |
| 0.00 | 2.37 | 0.00 | 1.42 | -10.24 | 163.12 | 30.08 | 240.97 | 0.5662 | -783.0 | -692.6 | |
| 0.62 | 2.37 | 0.37 | 1.42 | -10.72 | 162.64 | 29.60 | 239.83 | 0.5635 | -775.7 | -640.3 | |
| 0.00 | 1.93 | 0.00 | 1.16 | -10.95 | 162.35 | 29.31 | 239.22 | 0.5615 | -624.0 | -548.7 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -20.93 | 163.60 | 30.55 | 226.75 | 0.6541 | 701.0 | 573.2 | |
| 0.88 | 2.28 | 0.51 | 1.32 | -10.68 | 158.74 | 25.70 | 236.21 | 0.5147 | -713.6 | -566.1 | |
| 0.00 | 2.20 | 0.00 | 1.29 | -13.56 | 158.84 | 25.79 | 231.80 | 0.5402 | -572.0 | -431.3 | |
| 0.00 | 2.55 | 0.00 | 1.50 | -14.29 | 158.68 | 25.63 | 230.56 | 0.5449 | -792.0 | -652.3 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -14.64 | 158.73 | 25.68 | 230.10 | 0.5486 | -491.0 | -515.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -12.87 | 158.28 | 25.23 | 232.25 | 0.5277 | -703.0 | -560.1 | |
| 0.35 | 10.72 | 0.21 | 6.27 | -13.79 | 158.28 | 25.23 | 230.86 | 0.5359 | -607.2 | -601.7 | |
| 1.76 | -26.00 | 1.03 | -26.00 | -13.62 | 158.09 | 25.04 | 230.90 | 0.5322 | -882.2 | 999999 | |
| 1.14 | 2.99 | 0.67 | 1.74 | -13.39 | 157.86 | 24.81 | 231.00 | 0.5274 | -827.5 | -721.6 | |
| 0.26 | 11.51 | 0.15 | 6.67 | -13.44 | 157.63 | 24.58 | 230.65 | 0.5252 | -849.3 | -832.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -13.82 | 157.67 | 24.62 | 230.13 | 0.5292 | -589.0 | -453.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -12.41 | 157.42 | 24.37 | 232.00 | 0.5135 | -764.0 | -613.0 | |
| 7.73 | -29.00 | 4.48 | -29.00 | -13.17 | 157.43 | 24.38 | 230.83 | 0.5205 | -1028.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -17.69 | 151.65 | 18.61 | 216.90 | 0.5083 | -663.0 | -514.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -18.58 | 149.86 | 16.81 | 213.14 | 0.5035 | -692.0 | -524.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -19.85 | 146.10 | 13.05 | 205.67 | 0.4922 | -692.0 | -606.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
