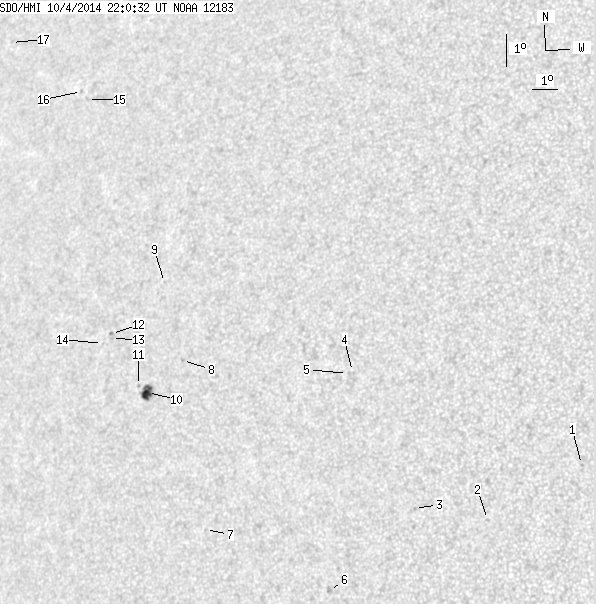

SDO HMI 2014-10-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.02 | 31.89 | 6.88 | 21.67 | 14.06 | 90.04 | -43.01 | 76.63 | 0.6804 | 311.2 | 125.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.59 | 12.15 | 105.75 | -27.30 | 76.22 | 0.4636 | 654.0 | 608.4 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 10.32 | 102.66 | -30.39 | 80.72 | 0.5063 | -608.0 | -523.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 10.50 | 100.02 | -33.03 | 80.77 | 0.5451 | -750.0 | -652.1 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 14.47 | 97.10 | -35.94 | 74.38 | 0.5924 | -422.0 | -440.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 14.40 | 96.93 | -36.12 | 74.55 | 0.5946 | -594.0 | -536.2 | |
| 0.00 | 3.08 | 0.00 | 1.87 | 7.85 | 97.17 | -35.88 | 85.64 | 0.5844 | -492.0 | -538.5 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 9.35 | 92.19 | -40.86 | 83.26 | 0.6524 | -605.0 | -389.5 | |
| 0.00 | 1.49 | 0.00 | 1.01 | 14.33 | 90.31 | -42.74 | 75.93 | 0.6802 | -623.0 | -480.4 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 16.62 | 88.94 | -44.11 | 72.86 | 0.7003 | 608.0 | 536.0 | |
| 10.02 | 13.62 | 6.88 | 9.35 | 13.26 | 89.06 | -43.99 | 77.64 | 0.6943 | 873.7 | 565.1 | |
| 0.00 | 1.32 | 0.00 | 0.91 | 13.44 | 88.63 | -44.42 | 77.43 | 0.6997 | 545.0 | 398.5 | |
| 0.00 | 1.32 | 0.00 | 0.94 | 14.91 | 87.07 | -45.98 | 75.55 | 0.7199 | 708.0 | 580.7 | |
| 0.00 | 1.23 | 0.00 | 0.87 | 14.76 | 87.11 | -45.94 | 75.76 | 0.7192 | 686.0 | 508.1 | |
| 0.00 | 0.44 | 0.00 | 0.31 | 14.58 | 86.76 | -46.29 | 76.05 | 0.7232 | 523.0 | 453.4 | |
| 0.00 | 1.76 | 0.00 | 1.36 | 21.87 | 83.38 | -49.67 | 66.91 | 0.7714 | 616.0 | 473.5 | |
| 0.00 | 1.14 | 0.00 | 0.89 | 22.09 | 82.97 | -50.08 | 66.71 | 0.7759 | 584.0 | 505.3 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 23.27 | 78.59 | -54.46 | 66.07 | 0.8199 | 279.0 | 207.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
