SDO HMI 2014-10-05 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 19.42 | 5.74 | 18.88 | -18.97 | 77.07 | -54.32 | 116.70 | 0.8599 | 306.5 | 204.6 | |
|
previous
or next observation for the same group /

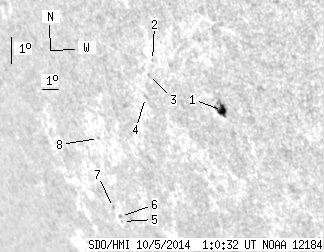

back to the solar disc SDO HMI 2014-10-05 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 13.01 | 5.74 | 11.81 | -18.26 | 79.47 | -51.92 | 116.82 | 0.8398 | 708.5 | 464.5 | |
| 0.00 | 0.79 | 0.00 | 0.77 | -16.94 | 76.32 | -55.07 | 114.16 | 0.8616 | 474.0 | 417.4 | |
| 0.00 | 0.62 | 0.00 | 0.61 | -17.43 | 75.87 | -55.52 | 114.54 | 0.8666 | 189.0 | 240.9 | |
| 0.00 | 1.58 | 0.00 | 1.59 | -18.23 | 75.32 | -56.07 | 115.22 | 0.8731 | 472.0 | 322.4 | |
| 0.00 | 0.26 | 0.00 | 0.32 | -22.75 | 71.16 | -60.24 | 118.60 | 0.9135 | -291.0 | -256.7 | |
| 0.00 | 1.32 | 0.00 | 1.59 | -22.59 | 71.15 | -60.24 | 118.42 | 0.9131 | -418.0 | -359.3 | |
| 0.00 | 1.05 | 0.00 | 1.28 | -22.31 | 70.89 | -60.51 | 118.05 | 0.9141 | -152.0 | -113.9 | |
| 0.00 | 0.79 | 0.00 | 0.91 | -19.96 | 71.52 | -59.87 | 115.79 | 0.9047 | -436.0 | -345.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
