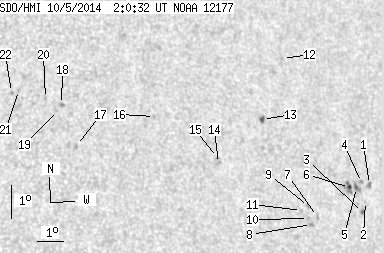

SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 43.85 | 2.76 | 28.57 | 10.45 | 171.43 | 40.59 | 278.70 | 0.6484 | 117.9 | -59.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.64 | 0.00 | 1.81 | 9.75 | 174.97 | 44.13 | 277.29 | 0.6941 | -705.0 | -555.7 | |
| 0.00 | 0.70 | 0.00 | 0.48 | 9.26 | 174.72 | 43.88 | 276.58 | 0.6909 | -687.0 | -584.2 | |
| 0.62 | 1.76 | 0.42 | 1.20 | 8.94 | 174.54 | 43.70 | 276.12 | 0.6887 | -765.9 | -654.3 | |
| 0.00 | 1.49 | 0.00 | 1.02 | 9.84 | 174.65 | 43.80 | 277.42 | 0.6901 | -630.0 | -581.7 | |
| 0.70 | 4.92 | 0.48 | 3.35 | 9.71 | 174.41 | 43.57 | 277.23 | 0.6871 | -819.9 | -629.9 | |
| 1.32 | 7.74 | 0.89 | 5.23 | 9.73 | 174.12 | 43.28 | 277.27 | 0.6835 | -818.2 | -677.8 | |
| 0.00 | 1.85 | 0.00 | 1.22 | 8.96 | 172.68 | 41.84 | 276.16 | 0.6650 | 511.0 | 420.3 | |
| 0.00 | 2.11 | 0.00 | 1.39 | 8.74 | 172.40 | 41.56 | 275.82 | 0.6614 | 729.0 | 580.4 | |
| 0.00 | 1.76 | 0.00 | 1.16 | 9.29 | 172.36 | 41.52 | 276.65 | 0.6609 | 731.0 | 567.5 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 8.93 | 172.31 | 41.46 | 276.11 | 0.6602 | 610.0 | 522.9 | |
| 0.00 | 1.49 | 0.00 | 0.98 | 9.19 | 172.06 | 41.22 | 276.51 | 0.6570 | 706.0 | 479.7 | |
| 0.00 | 1.32 | 0.00 | 0.87 | 13.79 | 172.12 | 41.27 | 283.50 | 0.6611 | -635.0 | -432.5 | |
| 1.49 | 3.08 | 0.97 | 1.99 | 12.03 | 170.95 | 40.11 | 280.95 | 0.6440 | -731.7 | -522.9 | |
| 0.00 | 1.93 | 0.00 | 1.22 | 10.83 | 169.01 | 38.17 | 279.25 | 0.6172 | 736.0 | 588.0 | |
| 0.00 | 1.58 | 0.00 | 0.99 | 11.02 | 169.00 | 38.15 | 279.55 | 0.6172 | 581.0 | 483.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 12.41 | 166.80 | 35.95 | 282.16 | 0.5888 | 450.0 | 310.1 | |
| 0.00 | 1.49 | 0.00 | 0.88 | 11.72 | 163.79 | 32.94 | 281.50 | 0.5455 | 631.0 | 481.5 | |
| 0.00 | 2.20 | 0.00 | 1.29 | 12.99 | 163.42 | 32.57 | 283.90 | 0.5426 | 634.0 | 509.3 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 12.81 | 163.25 | 32.40 | 283.63 | 0.5398 | 649.0 | 546.1 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 13.20 | 162.87 | 32.02 | 284.45 | 0.5352 | 682.0 | 586.3 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 13.50 | 161.93 | 31.09 | 285.28 | 0.5226 | 714.0 | 576.0 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 13.45 | 161.67 | 30.83 | 285.28 | 0.5187 | 715.0 | 625.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
