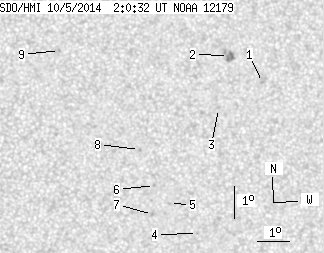

SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.32 | 0.00 | 9.15 | -11.76 | 139.34 | 8.50 | 205.03 | 0.3474 | -211.4 | 204.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.74 | -11.00 | 141.38 | 10.54 | 210.95 | 0.3506 | 777.0 | 596.9 | |
| 0.00 | 8.44 | 0.00 | 4.43 | -10.13 | 140.30 | 9.46 | 209.56 | 0.3294 | 1312.0 | 830.3 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -11.79 | 140.05 | 9.20 | 206.57 | 0.3515 | 734.0 | 593.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -15.78 | 139.54 | 8.69 | 201.03 | 0.4071 | -743.0 | -621.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.79 | 138.62 | 7.78 | 199.84 | 0.3872 | -766.0 | -636.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.21 | 138.13 | 7.29 | 199.20 | 0.3757 | -849.0 | -765.9 | |
| 0.00 | 2.11 | 0.00 | 1.13 | -15.14 | 138.10 | 7.26 | 198.31 | 0.3897 | -730.0 | -547.4 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.05 | 137.63 | 6.79 | 199.00 | 0.3552 | -810.0 | -728.5 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.89 | 135.11 | 4.27 | 194.56 | 0.2932 | -828.0 | -629.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
