SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 16.53 | 5.83 | 15.67 | -19.08 | 77.48 | -53.36 | 117.17 | 0.8528 | 424.3 | 206.1 | |
|
previous
or next observation for the same group /

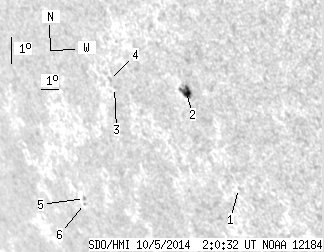

back to the solar disc SDO HMI 2014-10-05 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.55 | -21.33 | 80.70 | -50.15 | 120.98 | 0.8362 | 422.0 | 368.4 | |
| 6.51 | 11.08 | 5.83 | 9.93 | -18.25 | 79.44 | -51.40 | 117.02 | 0.8353 | 705.3 | 475.1 | |
| 0.00 | 1.23 | 0.00 | 1.22 | -18.49 | 75.49 | -55.35 | 115.76 | 0.8683 | 310.0 | 236.8 | |
| 0.00 | 1.49 | 0.00 | 1.48 | -18.24 | 75.33 | -55.51 | 115.43 | 0.8688 | 393.0 | 290.9 | |
| 0.00 | 1.41 | 0.00 | 1.66 | -22.59 | 71.25 | -59.59 | 118.63 | 0.9090 | -510.0 | -427.8 | |
| 0.00 | 0.70 | 0.00 | 0.83 | -22.77 | 71.12 | -59.72 | 118.78 | 0.9103 | -132.0 | -159.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
