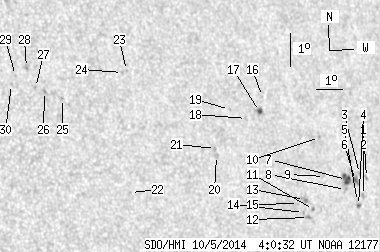

SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.62 | 51.16 | 5.90 | 33.79 | 10.52 | 171.24 | 41.49 | 278.80 | 0.6602 | 10.9 | 50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.35 | 9.71 | 175.07 | 45.33 | 277.22 | 0.7089 | -488.0 | -405.0 | |
| 0.00 | 1.93 | 0.00 | 1.35 | 9.18 | 174.85 | 45.11 | 276.47 | 0.7062 | -745.0 | -566.1 | |
| 0.00 | 1.32 | 0.00 | 0.92 | 9.85 | 174.79 | 45.05 | 277.43 | 0.7055 | -501.0 | -454.2 | |
| 0.79 | 1.93 | 0.55 | 1.34 | 8.90 | 174.59 | 44.85 | 276.07 | 0.7030 | -766.9 | -623.3 | |
| 0.00 | 1.49 | 0.00 | 1.04 | 9.02 | 174.57 | 44.82 | 276.25 | 0.7027 | -777.0 | -605.2 | |
| 1.06 | 3.43 | 0.73 | 2.38 | 9.65 | 174.59 | 44.84 | 277.15 | 0.7029 | -755.5 | -624.8 | |
| 5.01 | 7.21 | 3.46 | 4.97 | 9.71 | 174.21 | 44.47 | 277.24 | 0.6983 | -881.8 | -691.6 | |
| 0.00 | 1.58 | 0.00 | 1.09 | 9.42 | 174.12 | 44.37 | 276.82 | 0.6971 | -201.0 | -73.1 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 9.88 | 173.30 | 43.56 | 277.50 | 0.6871 | -502.0 | -510.7 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 11.06 | 173.30 | 43.56 | 279.22 | 0.6875 | -590.0 | -492.2 | |
| 0.00 | 1.49 | 0.00 | 1.01 | 8.93 | 172.69 | 42.95 | 276.11 | 0.6792 | 644.0 | 531.1 | |
| 0.00 | 1.93 | 0.00 | 1.30 | 8.71 | 172.45 | 42.71 | 275.78 | 0.6762 | 678.0 | 617.9 | |
| 0.00 | 3.78 | 0.00 | 2.53 | 9.25 | 172.37 | 42.62 | 276.60 | 0.6751 | 707.0 | 586.5 | |
| 0.00 | 1.14 | 0.00 | 0.76 | 8.87 | 172.27 | 42.52 | 276.02 | 0.6738 | 710.0 | 658.9 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 9.15 | 172.11 | 42.36 | 276.45 | 0.6718 | 706.0 | 655.3 | |
| 0.00 | 0.62 | 0.00 | 0.41 | 12.46 | 171.20 | 41.45 | 281.48 | 0.6619 | -571.0 | -451.3 | |
| 1.76 | 2.64 | 1.16 | 1.73 | 12.02 | 170.99 | 41.24 | 280.83 | 0.6588 | -712.0 | -545.6 | |
| 0.00 | 1.49 | 0.00 | 0.97 | 11.85 | 170.43 | 40.68 | 280.63 | 0.6514 | -712.0 | -532.4 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 12.17 | 169.80 | 40.05 | 281.19 | 0.6435 | -550.0 | -481.5 | |
| 0.00 | 2.46 | 0.00 | 1.57 | 10.83 | 169.05 | 39.31 | 279.16 | 0.6325 | 685.0 | 564.5 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 11.04 | 169.05 | 39.30 | 279.50 | 0.6326 | 568.0 | 469.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 9.95 | 165.61 | 35.86 | 277.99 | 0.5849 | 624.0 | 474.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 13.62 | 166.02 | 36.28 | 284.15 | 0.5952 | 640.0 | 581.7 | |
| 0.00 | 1.41 | 0.00 | 0.86 | 13.57 | 165.86 | 36.11 | 284.10 | 0.5929 | 741.0 | 573.9 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 12.93 | 163.49 | 33.75 | 283.53 | 0.5590 | 629.0 | 549.5 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 13.18 | 162.87 | 33.12 | 284.13 | 0.5507 | 679.0 | 659.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.32 | 162.56 | 32.81 | 284.47 | 0.5467 | 723.0 | 490.8 | |
| 0.00 | 2.46 | 0.00 | 1.45 | 13.95 | 162.33 | 32.58 | 285.66 | 0.5449 | 733.0 | 597.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 13.73 | 161.89 | 32.14 | 285.40 | 0.5382 | 676.0 | 548.2 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 13.47 | 161.70 | 31.96 | 284.97 | 0.5349 | 691.0 | 506.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
