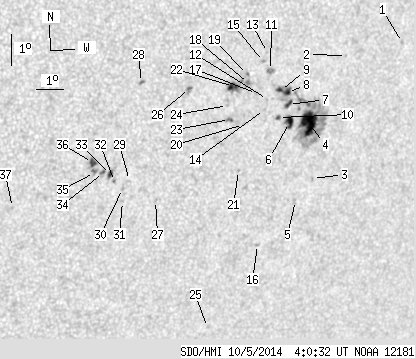

SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.41 | 212.55 | 33.24 | 134.89 | -12.16 | 163.66 | 33.92 | 240.99 | 0.6256 | 275.0 | 155.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.94 | -10.06 | 168.36 | 38.62 | 246.99 | 0.6700 | 670.0 | 543.4 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -10.31 | 166.24 | 36.49 | 245.41 | 0.6458 | 590.0 | 510.4 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -14.15 | 165.55 | 35.80 | 239.65 | 0.6597 | 648.0 | 580.0 | |
| 25.50 | 132.42 | 16.46 | 85.24 | -12.34 | 165.09 | 35.35 | 241.82 | 0.6435 | 930.3 | 323.0 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -14.81 | 165.02 | 35.28 | 238.39 | 0.6579 | 672.0 | 490.0 | |
| 6.24 | 9.14 | 3.99 | 5.85 | -12.29 | 164.37 | 34.63 | 241.39 | 0.6347 | 880.0 | 586.5 | |
| 2.55 | -4.00 | 1.62 | -4.00 | -11.71 | 164.25 | 34.50 | 242.13 | 0.6297 | 819.6 | 999999 | |
| 3.17 | -4.00 | 2.01 | -4.00 | -11.33 | 164.16 | 34.41 | 242.61 | 0.6264 | 1000.7 | 999999 | |
| 2.11 | -4.00 | 1.33 | -4.00 | -11.25 | 163.89 | 34.14 | 242.54 | 0.6226 | 877.3 | 999999 | |
| 1.06 | 2.46 | 0.67 | 1.56 | -12.10 | 163.93 | 34.19 | 241.35 | 0.6283 | 813.8 | 698.8 | |
| 0.00 | 4.48 | 0.00 | 2.81 | -10.59 | 163.43 | 33.69 | 243.19 | 0.6131 | -605.0 | -554.6 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -11.50 | 163.44 | 33.70 | 241.86 | 0.6188 | 754.0 | 618.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.02 | 163.26 | 33.51 | 243.92 | 0.6075 | -614.0 | -461.2 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -11.81 | 163.37 | 33.63 | 241.37 | 0.6199 | 700.0 | 572.6 | |
| 0.00 | 1.32 | 0.00 | 0.82 | -10.29 | 163.14 | 33.40 | 243.43 | 0.6077 | -824.0 | -748.5 | |
| 0.00 | 1.85 | 0.00 | 1.21 | -16.15 | 163.84 | 34.09 | 235.74 | 0.6537 | 644.0 | 551.7 | |
| 0.00 | 1.58 | 0.00 | 0.99 | -11.28 | 163.01 | 33.26 | 241.87 | 0.6122 | 287.0 | 236.1 | |
| 0.00 | 4.22 | 0.00 | 2.62 | -10.95 | 162.67 | 32.93 | 242.12 | 0.6060 | 295.0 | 57.5 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -10.66 | 162.60 | 32.86 | 242.50 | 0.6033 | -803.0 | -626.3 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -12.24 | 162.66 | 32.92 | 240.23 | 0.6141 | 558.0 | 465.0 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -13.70 | 162.70 | 32.95 | 238.18 | 0.6242 | 490.0 | 437.0 | |
| 5.54 | 12.84 | 3.42 | 7.94 | -11.01 | 162.14 | 32.39 | 241.64 | 0.5998 | -667.3 | -167.8 | |
| 0.00 | 3.17 | 0.00 | 1.97 | -12.04 | 162.12 | 32.38 | 240.10 | 0.6064 | 847.0 | 695.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.60 | 161.99 | 32.25 | 240.66 | 0.6018 | 687.0 | 526.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -18.77 | 162.49 | 32.75 | 231.31 | 0.6584 | 599.0 | 474.8 | |
| 0.44 | 3.52 | 0.27 | 2.13 | -10.97 | 160.55 | 30.80 | 240.46 | 0.5800 | -792.4 | -676.6 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -14.47 | 159.80 | 30.05 | 234.69 | 0.5965 | -605.0 | -432.4 | |
| 0.00 | 2.02 | 0.00 | 1.20 | -10.68 | 158.82 | 29.08 | 239.47 | 0.5566 | -776.0 | -549.9 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -13.77 | 158.77 | 29.03 | 234.76 | 0.5792 | -556.0 | -488.2 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -14.01 | 158.56 | 28.81 | 234.21 | 0.5787 | -512.0 | -497.4 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -14.43 | 158.62 | 28.87 | 233.66 | 0.5827 | -705.0 | -598.1 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -13.77 | 158.24 | 28.50 | 234.26 | 0.5731 | -651.0 | -477.4 | |
| 2.11 | 3.61 | 1.27 | 2.17 | -13.54 | 158.07 | 28.33 | 234.44 | 0.5693 | -779.3 | -535.3 | |
| 0.70 | 3.52 | 0.42 | 2.11 | -13.46 | 157.82 | 28.07 | 234.31 | 0.5657 | -862.4 | -663.2 | |
| 0.00 | 2.64 | 0.00 | 1.58 | -13.44 | 157.50 | 27.75 | 234.02 | 0.5618 | -808.0 | -703.8 | |
| 2.99 | 5.45 | 1.78 | 3.25 | -13.12 | 157.39 | 27.64 | 234.40 | 0.5579 | -1019.2 | -818.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -14.41 | 154.79 | 25.04 | 229.75 | 0.5392 | -696.0 | -501.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
