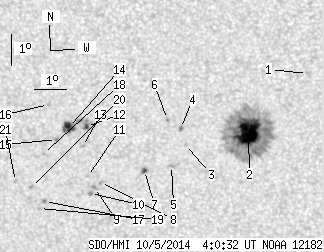

SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.28 | 247.79 | 24.17 | 132.30 | -13.54 | 121.19 | -8.56 | 157.27 | 0.3738 | 325.5 | 219.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.51 | 124.11 | -5.63 | 162.71 | 0.3251 | 796.0 | 609.3 | |
| 34.64 | 195.38 | 18.42 | 103.90 | -13.41 | 122.24 | -7.51 | 159.49 | 0.3645 | 1350.6 | 404.7 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -13.82 | 120.26 | -9.49 | 155.18 | 0.3831 | 712.0 | 534.6 | |
| 0.00 | 1.93 | 0.00 | 1.03 | -13.31 | 120.12 | -9.63 | 154.28 | 0.3766 | 977.0 | 825.0 | |
| 0.00 | 2.29 | 0.00 | 1.23 | -14.51 | 119.79 | -9.96 | 154.88 | 0.3962 | -911.0 | -709.5 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -13.04 | 119.73 | -10.02 | 153.03 | 0.3754 | 818.0 | 733.3 | |
| 1.41 | 3.34 | 0.76 | 1.81 | -14.68 | 118.93 | -10.82 | 153.22 | 0.4047 | 980.4 | 697.5 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -15.10 | 117.51 | -12.24 | 150.79 | 0.4211 | -743.0 | -621.2 | |
| 0.00 | 2.64 | 0.00 | 1.44 | -15.27 | 117.31 | -12.44 | 150.59 | 0.4250 | -990.0 | -808.8 | |
| 0.00 | 1.93 | 0.00 | 1.06 | -15.47 | 117.17 | -12.58 | 150.56 | 0.4288 | -926.0 | -728.6 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.92 | 117.11 | -12.64 | 149.77 | 0.4218 | -836.0 | -607.1 | |
| 1.32 | 10.73 | 0.71 | 5.79 | -13.32 | 117.17 | -12.58 | 147.81 | 0.3996 | -1053.9 | -874.4 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -13.96 | 117.01 | -12.74 | 148.35 | 0.4096 | -757.0 | -602.8 | |
| 7.91 | 10.99 | 4.28 | 5.95 | -13.36 | 116.60 | -13.15 | 146.72 | 0.4051 | -994.1 | -770.0 | |
| 0.00 | 2.11 | 0.00 | 1.15 | -13.76 | 116.19 | -13.55 | 146.47 | 0.4138 | -973.0 | -750.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -12.65 | 116.00 | -13.74 | 144.52 | 0.4010 | -707.0 | -609.6 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -15.76 | 115.68 | -14.07 | 148.11 | 0.4447 | -956.0 | -719.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.22 | 115.75 | -14.00 | 146.25 | 0.4237 | -829.0 | -666.6 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -16.00 | 115.50 | -14.25 | 148.07 | 0.4492 | -391.0 | -419.2 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -15.29 | 115.29 | -14.45 | 146.81 | 0.4417 | -739.0 | -654.1 | |
| 0.00 | 1.67 | 0.00 | 0.92 | -15.14 | 114.79 | -14.96 | 145.72 | 0.4442 | -765.0 | -501.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
