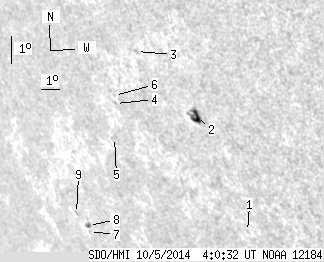

SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.18 | 24.09 | 7.42 | 22.63 | -19.15 | 76.84 | -52.91 | 117.44 | 0.8492 | 318.2 | 190.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.62 | -21.94 | 80.41 | -49.34 | 122.02 | 0.8320 | 360.0 | 287.0 | |
| 7.12 | 13.19 | 6.22 | 11.52 | -18.22 | 79.50 | -50.24 | 117.47 | 0.8252 | 690.6 | 451.0 | |
| 0.00 | 2.02 | 0.00 | 1.83 | -16.32 | 77.21 | -52.53 | 114.40 | 0.8385 | 323.0 | 302.3 | |
| 0.00 | 1.06 | 0.00 | 1.02 | -18.19 | 75.31 | -54.44 | 115.75 | 0.8602 | 480.0 | 317.7 | |
| 0.00 | 2.73 | 0.00 | 2.71 | -19.36 | 74.68 | -55.07 | 116.80 | 0.8686 | 51.0 | 128.7 | |
| 0.00 | 0.53 | 0.00 | 0.51 | -17.92 | 75.38 | -54.37 | 115.49 | 0.8588 | 217.0 | 235.8 | |
| 0.00 | 0.79 | 0.00 | 0.91 | -22.84 | 71.12 | -58.63 | 119.22 | 0.9034 | -296.0 | -256.6 | |
| 1.06 | 2.37 | 1.20 | 2.70 | -22.63 | 71.20 | -58.55 | 119.03 | 0.9023 | -475.1 | -397.2 | |
| 0.00 | 0.70 | 0.00 | 0.81 | -22.28 | 70.69 | -59.06 | 118.48 | 0.9048 | -271.0 | -234.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
