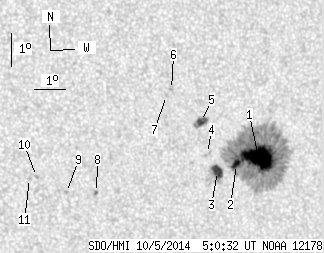

SDO HMI 2014-10-05 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.71 | 344.87 | 35.92 | 191.68 | -1.38 | 154.94 | 25.74 | 253.78 | 0.4540 | 1045.6 | 374.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.25 | 306.44 | 25.76 | 170.70 | -1.39 | 155.27 | 26.07 | 254.00 | 0.4590 | 1346.4 | 374.5 | |
| 5.10 | -1.00 | 2.82 | -1.00 | -1.56 | 154.54 | 25.34 | 253.14 | 0.4490 | 1207.6 | 999999 | |
| 8.35 | 16.71 | 4.60 | 9.21 | -1.75 | 153.91 | 24.72 | 252.31 | 0.4405 | 1083.9 | 664.9 | |
| 0.00 | 3.34 | 0.00 | 1.83 | -1.18 | 153.58 | 24.38 | 253.29 | 0.4327 | 605.0 | 594.4 | |
| 5.01 | 9.85 | 2.74 | 5.38 | -0.21 | 153.38 | 24.18 | 255.34 | 0.4251 | 1021.5 | 772.4 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 0.80 | 152.40 | 23.20 | 257.08 | 0.4058 | 872.0 | 696.7 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 0.63 | 152.23 | 23.03 | 256.56 | 0.4040 | 803.0 | 659.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -2.20 | 149.98 | 20.78 | 247.86 | 0.3844 | -811.0 | -732.5 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -2.16 | 149.02 | 19.82 | 246.95 | 0.3698 | -805.0 | -647.7 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -1.64 | 148.06 | 18.86 | 247.20 | 0.3520 | -891.0 | -630.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -1.69 | 147.84 | 18.64 | 246.81 | 0.3491 | -771.0 | -546.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
