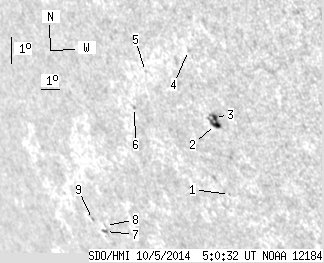

SDO HMI 2014-10-05 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.51 | 20.94 | 5.61 | 19.41 | -19.36 | 76.88 | -52.32 | 117.89 | 0.8446 | 334.8 | 144.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.55 | -20.67 | 79.15 | -50.05 | 120.29 | 0.8328 | 409.0 | 363.9 | |
| 4.31 | 12.93 | 3.72 | 11.15 | -18.34 | 79.45 | -49.75 | 117.81 | 0.8213 | 634.4 | 498.4 | |
| 2.20 | -2.00 | 1.89 | -2.00 | -18.10 | 79.49 | -49.71 | 117.57 | 0.8200 | 834.6 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.13 | -15.98 | 79.00 | -50.20 | 114.93 | 0.8167 | 247.0 | 230.1 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -16.89 | 76.49 | -52.71 | 114.96 | 0.8418 | 472.0 | 377.0 | |
| 0.00 | 1.06 | 0.00 | 1.00 | -18.16 | 75.36 | -53.84 | 115.95 | 0.8552 | 358.0 | 343.8 | |
| 0.00 | 2.81 | 0.00 | 3.16 | -22.67 | 71.18 | -58.02 | 119.26 | 0.8990 | -466.0 | -324.0 | |
| 0.00 | 0.97 | 0.00 | 1.08 | -22.46 | 71.32 | -57.88 | 119.08 | 0.8974 | -458.0 | -401.8 | |
| 0.00 | 0.97 | 0.00 | 1.10 | -22.33 | 70.60 | -58.60 | 118.69 | 0.9019 | -278.0 | -182.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
