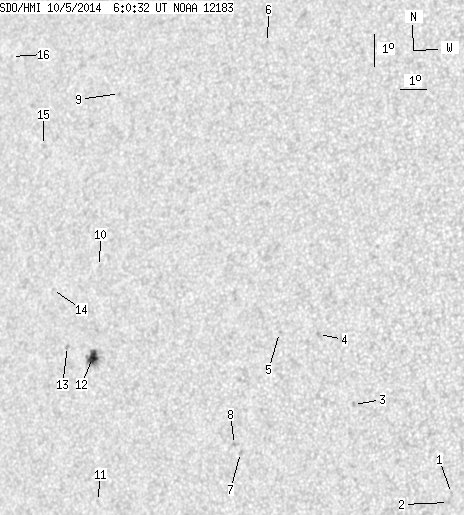

SDO HMI 2014-10-05 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.88 | 37.11 | 5.70 | 23.37 | 13.91 | 90.90 | -37.75 | 75.75 | 0.6148 | 195.9 | 128.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.68 | 9.95 | 102.65 | -26.00 | 80.62 | 0.4395 | -667.0 | -580.9 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 9.68 | 102.57 | -26.08 | 81.26 | 0.4403 | -808.0 | -637.3 | |
| 0.00 | 1.76 | 0.00 | 1.00 | 12.45 | 99.00 | -29.65 | 76.27 | 0.4993 | -738.0 | -587.8 | |
| 0.00 | 2.20 | 0.00 | 1.28 | 14.49 | 97.46 | -31.19 | 72.85 | 0.5268 | -619.0 | -457.3 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 14.47 | 96.04 | -32.61 | 73.38 | 0.5468 | -572.0 | -505.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 23.29 | 93.55 | -35.10 | 59.77 | 0.6134 | 416.0 | 324.6 | |
| 0.00 | 1.85 | 0.00 | 1.10 | 10.78 | 95.14 | -33.51 | 80.27 | 0.5524 | -718.0 | -554.9 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 11.01 | 94.89 | -33.76 | 79.90 | 0.5563 | -657.0 | -529.3 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 21.33 | 88.09 | -40.56 | 65.10 | 0.6701 | 575.0 | 510.3 | |
| 0.00 | 0.44 | 0.00 | 0.28 | 16.02 | 88.77 | -39.88 | 72.82 | 0.6474 | 574.0 | 472.2 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 8.97 | 89.96 | -38.69 | 83.77 | 0.6234 | -432.0 | -279.9 | |
| 8.88 | 19.08 | 5.70 | 12.24 | 13.26 | 89.08 | -39.57 | 77.03 | 0.6385 | 940.1 | 509.5 | |
| 0.00 | 2.11 | 0.00 | 1.38 | 13.52 | 88.02 | -40.63 | 76.79 | 0.6526 | 651.0 | 445.9 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 15.19 | 87.03 | -41.62 | 74.44 | 0.6677 | 546.0 | 476.0 | |
| 0.00 | 1.67 | 0.00 | 1.15 | 19.51 | 85.41 | -43.24 | 68.53 | 0.6962 | 658.0 | 445.9 | |
| 0.00 | 0.70 | 0.00 | 0.51 | 22.12 | 83.00 | -45.65 | 65.59 | 0.7298 | 487.0 | 378.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
