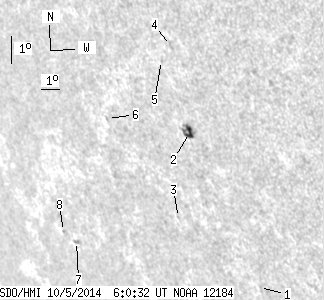

SDO HMI 2014-10-05 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 22.26 | 4.87 | 19.83 | -18.80 | 77.80 | -50.85 | 117.87 | 0.8309 | 375.5 | 246.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.62 | 0.00 | 0.54 | -23.31 | 80.73 | -47.92 | 124.18 | 0.8261 | 323.0 | 278.1 | |
| 5.72 | 12.84 | 4.87 | 10.94 | -18.25 | 79.52 | -49.13 | 117.98 | 0.8154 | 744.5 | 523.6 | |
| 0.00 | 0.79 | 0.00 | 0.72 | -21.22 | 77.68 | -50.97 | 120.48 | 0.8424 | 233.0 | 253.7 | |
| 0.00 | 2.99 | 0.00 | 2.48 | -15.43 | 79.61 | -49.04 | 114.77 | 0.8040 | 386.0 | 284.9 | |
| 0.00 | 0.62 | 0.00 | 0.52 | -15.96 | 79.00 | -49.66 | 115.14 | 0.8116 | 339.0 | 366.4 | |
| 0.00 | 1.41 | 0.00 | 1.32 | -18.17 | 75.40 | -53.25 | 116.18 | 0.8504 | 306.0 | 364.2 | |
| 0.00 | 2.29 | 0.00 | 2.52 | -22.65 | 71.20 | -57.45 | 119.43 | 0.8951 | -511.0 | -397.5 | |
| 0.00 | 0.70 | 0.00 | 0.79 | -22.38 | 70.58 | -58.07 | 118.93 | 0.8985 | -245.0 | -247.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
