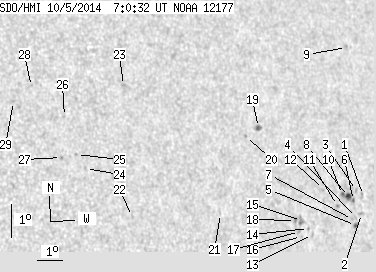

SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.35 | 41.67 | 3.79 | 28.48 | 10.31 | 171.73 | 43.62 | 278.32 | 0.6870 | 30.6 | 4.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.64 | 9.64 | 175.23 | 47.12 | 277.13 | 0.7304 | -434.0 | -427.1 | |
| 0.00 | 1.58 | 0.00 | 1.14 | 9.11 | 175.04 | 46.94 | 276.40 | 0.7283 | -658.0 | -535.9 | |
| 0.00 | 1.32 | 0.00 | 0.95 | 9.82 | 174.95 | 46.84 | 277.37 | 0.7271 | -476.0 | -394.5 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 9.01 | 174.80 | 46.70 | 276.26 | 0.7254 | -734.0 | -657.0 | |
| 0.79 | 2.02 | 0.57 | 1.45 | 8.78 | 174.72 | 46.62 | 275.94 | 0.7244 | -732.9 | -613.3 | |
| 0.35 | 7.21 | 0.25 | 5.15 | 9.53 | 174.76 | 46.66 | 276.98 | 0.7249 | -713.2 | -796.4 | |
| 0.00 | 1.14 | 0.00 | 0.82 | 8.97 | 174.62 | 46.51 | 276.20 | 0.7232 | -690.0 | -554.8 | |
| 2.37 | -6.00 | 1.70 | -6.00 | 9.67 | 174.56 | 46.46 | 277.17 | 0.7225 | -950.3 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.15 | 14.12 | 175.49 | 47.38 | 283.24 | 0.7355 | -441.0 | -395.3 | |
| 0.70 | -6.00 | 0.50 | -6.00 | 9.75 | 174.31 | 46.21 | 277.28 | 0.7196 | -868.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.93 | 9.44 | 174.04 | 45.93 | 276.85 | 0.7162 | 295.0 | 223.0 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 9.96 | 173.52 | 45.41 | 277.60 | 0.7100 | -704.0 | -599.6 | |
| 0.00 | 1.06 | 0.00 | 0.73 | 8.66 | 172.83 | 44.72 | 275.74 | 0.7015 | 455.0 | 373.5 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 8.85 | 172.68 | 44.58 | 276.02 | 0.6997 | 501.0 | 464.0 | |
| 0.00 | 4.40 | 0.00 | 3.03 | 9.11 | 172.43 | 44.32 | 276.40 | 0.6965 | 630.0 | 486.4 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 8.64 | 172.35 | 44.25 | 275.71 | 0.6956 | 634.0 | 631.7 | |
| 0.00 | 1.41 | 0.00 | 0.97 | 8.79 | 172.29 | 44.19 | 275.93 | 0.6948 | 715.0 | 588.6 | |
| 0.00 | 1.76 | 0.00 | 1.21 | 9.13 | 172.17 | 44.07 | 276.42 | 0.6934 | 710.0 | 620.0 | |
| 1.14 | 2.99 | 0.77 | 2.02 | 12.03 | 171.13 | 43.03 | 280.70 | 0.6815 | -703.6 | -510.5 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 11.80 | 170.54 | 42.44 | 280.41 | 0.6739 | -563.0 | -563.2 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 9.58 | 169.14 | 41.03 | 277.13 | 0.6547 | 475.0 | 442.5 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 9.73 | 165.69 | 37.58 | 277.53 | 0.6086 | 576.0 | 458.0 | |
| 0.00 | 1.93 | 0.00 | 1.22 | 13.68 | 165.98 | 37.88 | 283.94 | 0.6169 | 634.0 | 500.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.29 | 164.11 | 36.01 | 280.29 | 0.5881 | 530.0 | 442.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 11.73 | 163.84 | 35.73 | 281.08 | 0.5849 | 603.0 | 493.5 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 12.90 | 163.57 | 35.46 | 283.13 | 0.5829 | 574.0 | 402.3 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 11.68 | 163.26 | 35.16 | 281.08 | 0.5768 | 808.0 | 698.8 | |
| 0.00 | 0.53 | 0.00 | 0.32 | 13.88 | 162.49 | 34.39 | 285.07 | 0.5700 | 604.0 | 527.8 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 13.47 | 161.75 | 33.65 | 284.54 | 0.5588 | 739.0 | 541.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
